SERIES #1

Let's build a home agent lab, junky style

Not just consuming AI. Building it. That’s the whole premise of this series, so let’s start where every real build starts: a laptop, a terminal, and way too many tabs open.

This first post is the lab setup. No theory, no slide decks — just the actual environment I’m running every future post in this series on top of. If you’re following along, get this working first. Everything after this assumes it’s here.

What we’re building

A local development environment where an agent runs entirely on your machine, but calls out to real Google Cloud infrastructure for the model, the logging, and eventually the deployment target. Locally you get a fast feedback loop. Remotely you get the actual Vertex AI-hosted models and the services that make this production-shaped instead of toy-shaped.

The split looks like this:

  • Local: Windows 11, the agent code, the tools it calls, a browser hitting a dev UI
  • Remote: Vertex AI (Gemini models), Cloud Storage, Secret Manager, Cloud Logging, IAM — all sitting in a single GCP project

Nothing here is exotic. That’s the point. If your lab is fragile, everything you build on top of it inherits that fragility.

Architecture Overview

LOCAL

Windows 11 machine

Browser

ADK Dev UI · 127.0.0.1:8080/dev-ui

ADK Web Server

Uvicorn

ReAct Agent + Tools

Gemini via Vertex AI

Python 3.11

managed with uv

VS CodePowerShellgcloud CLI
🔒 HTTPS/gRPC · ADC Auth

GOOGLE CLOUD

agentic-ai-labs-502223

Vertex AI

gemini-2.5-pro · gemini-2.0-flash

Cloud Storage + Secret Manager

artifacts & secrets

Cloud Logging + Monitoring

observability

IAM

permissions & service accounts

Cloud BuildArtifact RegistryTerraform

Future integrations

MCP ServersA2A ProtocolExternal APIsEnterprise Data

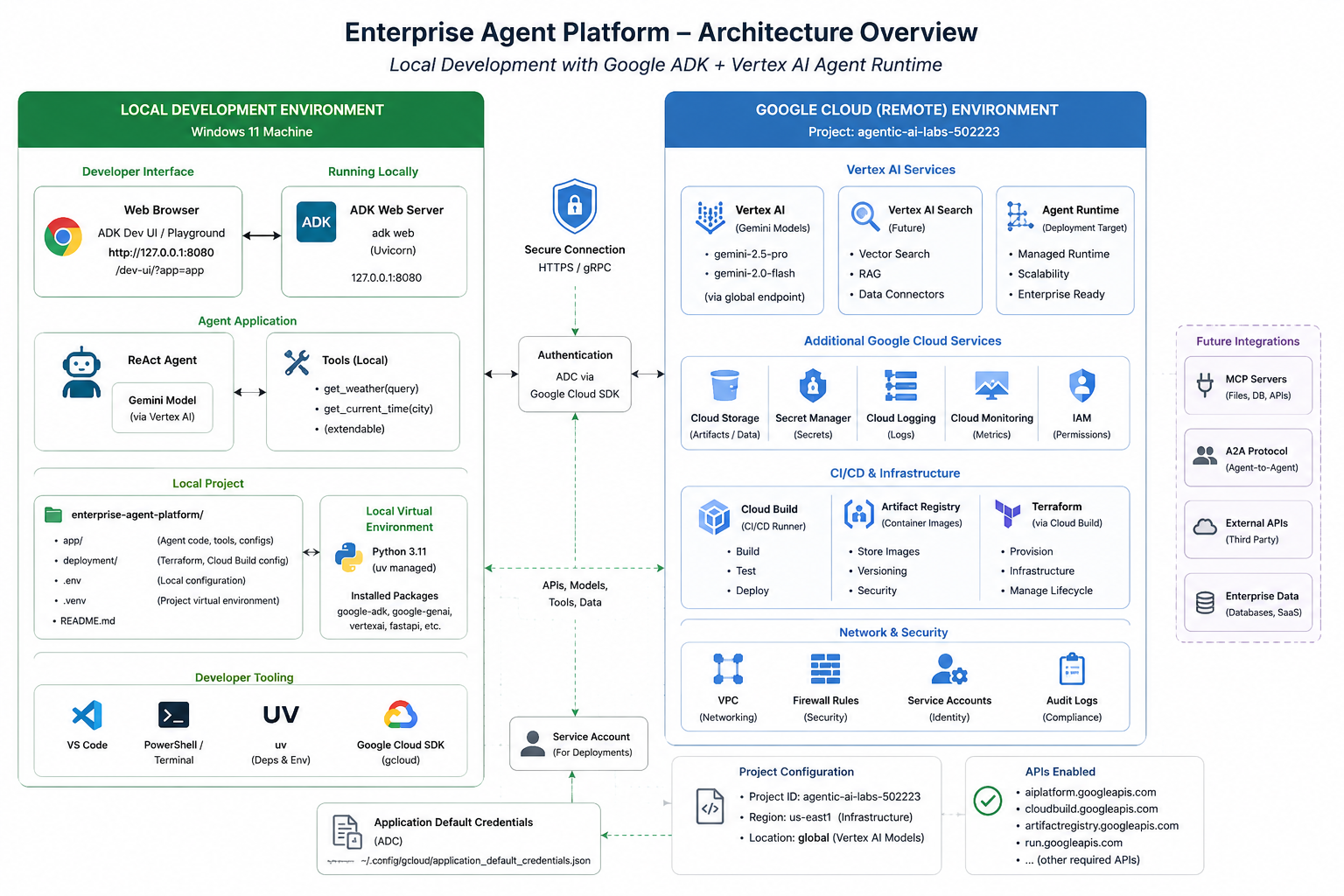

Want every wire and box? Here’s the full breakdown:

Enterprise Agent Platform

Full Architecture Reference

LOCAL DEVELOPMENT ENVIRONMENT

Windows 11 Machine

Developer Interface & Runtime

🌐 Web Browser

ADK Dev UI / Playground

http://127.0.0.1:8080/dev-ui/?app=app

🤖 ADK Web Server

adk web (Uvicorn)

127.0.0.1:8080

Agent Application

🧠 ReAct Agent

Gemini Model (via Vertex AI)

🛠️ Tools (Local)

get_weather(query)

get_current_time(city)

(extendable)

Local Project

📁 enterprise-agent-platform/

app/ — agent code, tools, configs

deployment/ — Terraform, Cloud Build config

.env — local configuration

.venv — project virtual environment

README.md

🐍 Local Virtual Environment

Python 3.11 (uv managed)

Installed: google-adk, google-genai, vertexai, fastapi, etc.

Developer Tooling

VS CodePowerShell / Terminaluv (Deps & Env)Google Cloud SDK (gcloud)

🔒 Secure Connection

Secure Connection

HTTPS / gRPC

Authentication

ADC via Google Cloud SDK

Service Account

For deployments

Application Default Credentials

~/.config/gcloud/application_default_credentials.json

↕ APIs · Models · Tools · Data

GOOGLE CLOUD (REMOTE) ENVIRONMENT

Project: agentic-ai-labs-502223

Vertex AI Services

✨ Vertex AI (Gemini Models)

gemini-2.5-pro

gemini-2.0-flash

(via global endpoint)

🔍 Vertex AI Search (Future)

Vector Search

RAG

Data Connectors

🚀 Agent Runtime (Deployment Target)

Managed Runtime

Scalability

Enterprise Ready

Additional Google Cloud Services

🗄️ Cloud Storage

Artifacts / Data

🔐 Secret Manager

Secrets

📜 Cloud Logging

Logs

📊 Cloud Monitoring

Metrics

🪪 IAM

Permissions

CI/CD & Infrastructure

🏗️ Cloud Build (CI/CD Runner)

Build

Test

Deploy

📦 Artifact Registry

Store Images

Versioning

Security

🌍 Terraform (via Cloud Build)

Provision

Infrastructure

Manage Lifecycle

Network & Security

🕸️ VPC

Networking

🛡️ Firewall Rules

Security

👤 Service Accounts

Identity

🧾 Audit Logs

Compliance

Project Configuration

  • Project ID: agentic-ai-labs-502223
  • Region: us-east1 (Infrastructure)
  • Location: global (Vertex AI Models)

✅ APIs Enabled

  • aiplatform.googleapis.com
  • cloudbuild.googleapis.com
  • artifactregistry.googleapis.com
  • run.googleapis.com
  • ...and other required APIs

Future Integrations

🔌 MCP Servers

Files, DB, APIs

🤝 A2A Protocol

Agent-to-Agent

☁️ External APIs

Third Party

🗃️ Enterprise Data

Databases, SaaS

The stack

Here’s exactly what’s installed and why:

  • Python 3.11, managed with uv instead of pip/venv directly — faster installs, and dependency resolution that doesn’t quietly break every six months
  • google-adk — Google’s Agent Development Kit, the actual framework running the agent loop
  • google-genai and vertexai — SDKs for talking to Gemini through Vertex AI rather than the public Gemini API, since this is meant to look like an enterprise setup, not a hobby script
  • fastapi — comes along for the ride with ADK’s dev server
  • Google Cloud SDK (gcloud) — for authentication, not for manually clicking through consoles
  • VS Code + PowerShell terminal — nothing unusual, just the daily driver

Project structure on disk:

enterprise-agent-platform/
├── app/            # agent code, tools, configs
├── deployment/     # Terraform, Cloud Build config
├── .env            # local configuration
├── .venv/          # project virtual environment
└── README.md

Keeping deployment/ in the repo from day one, even though there’s nothing to deploy yet, is deliberate. It means Terraform and CI/CD aren’t an afterthought bolted on in post six — they’re structural from the start.

Getting ADK running locally

The whole point of local dev here is speed: change code, see it run, without pushing to the cloud every time.

1. Authenticate to Google Cloud from your machine

gcloud auth application-default login

This drops Application Default Credentials at ~/.config/gcloud/application_default_credentials.json, which is what the SDKs pick up automatically — no keys hardcoded anywhere, no service account JSON floating around in the repo.

2. Set the active project

gcloud config set project agentic-ai-labs-502223

(Yes, that’s a real project ID from my own setup — yours will be whatever you named it when you created the project in the console.)

3. Enable the APIs you’ll actually need

gcloud services enable aiplatform.googleapis.com
gcloud services enable cloudbuild.googleapis.com
gcloud services enable artifactregistry.googleapis.com
gcloud services enable run.googleapis.com

Skip this step and you’ll spend twenty minutes convinced your code is broken when it’s actually just a disabled API.

4. Install the project dependencies with uv

uv venv
uv pip install google-adk google-genai vertexai fastapi

5. Run the ADK dev server

adk web

This spins up a Uvicorn server at 127.0.0.1:8080, with a dev UI at /dev-ui/?app=app in your browser. That’s your playground — you edit the agent, refresh, and you’re talking to it through a real chat interface backed by a real Gemini model on Vertex AI, not a mock.

The agent itself, for now

Nothing clever yet — a ReAct agent backed by a Gemini model, with two tools:

  • get_weather(query)
  • get_current_time(city)

Request Flow

Browser

dev-ui

ADK Web Server

Uvicorn

ReAct Agent

Gemini · Vertex AI

Tools

get_weather · get_current_time

Tools loop back into the agent before the final response streams to the browser.

Deliberately boring. The goal of post one isn’t a smart agent, it’s a lab that doesn’t lie to you. Once the plumbing’s honest, every future post gets to focus entirely on the interesting part instead of fighting the environment.

What broke (and why that’s fine)

In the interest of “real projects, real insights” and not a highlight reel:

  • First adk web attempt failed silently because ADC hadn’t actually been picked up — turned out to be a stale environment variable from an old project pointing GOOGLE_CLOUD_PROJECT somewhere else. Worth checking echo $env:GOOGLE_CLOUD_PROJECT in PowerShell before you assume the SDK is broken.
  • Forgot to enable aiplatform.googleapis.com on a fresh project and got a permissions error that reads nothing like “you forgot to enable an API.” If Vertex AI calls fail with vague auth errors, check enabled APIs before you check your credentials.
  • uv occasionally caches an old resolution if you change Python version mid-project — uv venv --python 3.11 explicitly, don’t assume it’ll pick up the right one from PATH.

None of this is exciting. All of it is exactly the kind of thing that eats an evening if nobody’s written it down. So it’s written down.

What’s next

Next post in the series goes deeper into ADK itself — how the agent loop actually works, how tools get registered, and where Vertex AI Agent Engine comes in once you’re ready to stop running this locally and actually deploy it.

Build agents. Ship impact. Stay junky.
