DEEP DIVE SERIES · #16

From SAN to Sovereign AI: The Storage Architecture Revolution

Luca Viscomi

· Published Oct 13, 2026 · Updated Oct 13, 2026 · 20 min read

For decades, enterprise storage architecture revolved around a familiar, well-understood set of technologies: Storage Area Network (SAN) fabrics, RAID groups, dual-redundant active-passive controllers, Fibre Channel switches, and carefully carved LUNs.

The engineering objective was straightforward: provide predictable block I/O, ultra-high availability (the coveted “five nines”), sufficient throughput, and rock-solid disaster recoverability for transactional databases and virtualised enterprise workloads.

That world has fundamentally transformed.

Modern AI infrastructure requires thousands of high-density accelerators (GPUs and TPUs) to access massive, unstructured datasets simultaneously. Large language model (LLM) training routinely demands hundreds of petabytes of ingestion data streamed at line rate, while distributed inference platforms must hot-load tens of gigabytes of model weights, query vector databases, preserve multi-turn agent contexts, and serve user requests with sub-100ms latency.

The storage subsystem is no longer merely a passive repository where data sits at rest. It has become an active, computational component of the AI execution pipeline.

Crucially, the most consequential breakthrough of this decade is not simply denser or faster solid-state drives (SSDs). It is the architectural decoupling of compute, metadata, and persistent media into independently scalable, distributed data fabrics.

In this deep dive, we examine this architectural paradigm shift, evaluate the core platform approaches dominating 2026 (including Ceph, VAST Data, WEKA, DDN, NetApp AFX, and Everpure FlashBlade//EXA), and explore what sovereign AI infrastructure operators (such as G42’s Core42 in the UAE) must scrutinize when engineering platforms for national-scale enterprise and government workloads.

1. The Evolution of Enterprise Storage

Enterprise storage has transitioned across five distinct structural eras:

These architectural generations are not mutually exclusive. Traditional SAN arrays have not vanished overnight. Nor is a shiny new distributed architecture automatically superior for every scenario.

A transactional enterprise relational database (like an core banking Oracle or PostgreSQL cluster) requires deterministic sub-millisecond write latency, ACID transactional isolation, and battle-tested snapshot replication. A traditional high-end enterprise SAN remains an exceptional choice for that specific workload.

The modern challenge is that an enterprise AI cloud must serve radically divergent I/O patterns simultaneously over the exact same data tier:

1. Massive Parallel Sequential Reads: Ingesting multi-terabyte tokenized shards into training clusters at 500+ GiB/s.
2. High-Burst Checkpoint Writes: Hundreds of worker nodes halting computation simultaneously to dump their multi-terabyte model states to storage.
3. Small-File Metadata Storms: Ingesting millions of multimodal images, audio clips, and PDF snippets during preprocessing.
4. S3 Object Access: Providing cloud-native object interfaces for datasets, fine-tuning checkpoints, and evaluation artifacts.
5. Low-Latency Vector & RAG Queries: Rapid random reads supporting dense vector retrieval and external semantic memory lookups.
6. Inference KV-Cache Offloading & Reloading: Preserving and restoring intermediate attention matrices across long-context agentic reasoning sessions.
7. Strict Multi-Tenant Isolation & Sovereign Jurisdictions: Cryptographically isolating customer datasets, enforcing hardware key residency, and complying with national regulatory mandates.

No single legacy array can satisfy this multifaceted workload matrix without severe compromises.

2. Coupled Versus Disaggregated Storage

To understand why traditional infrastructure falters under AI workloads, consider how traditional storage arrays scale:

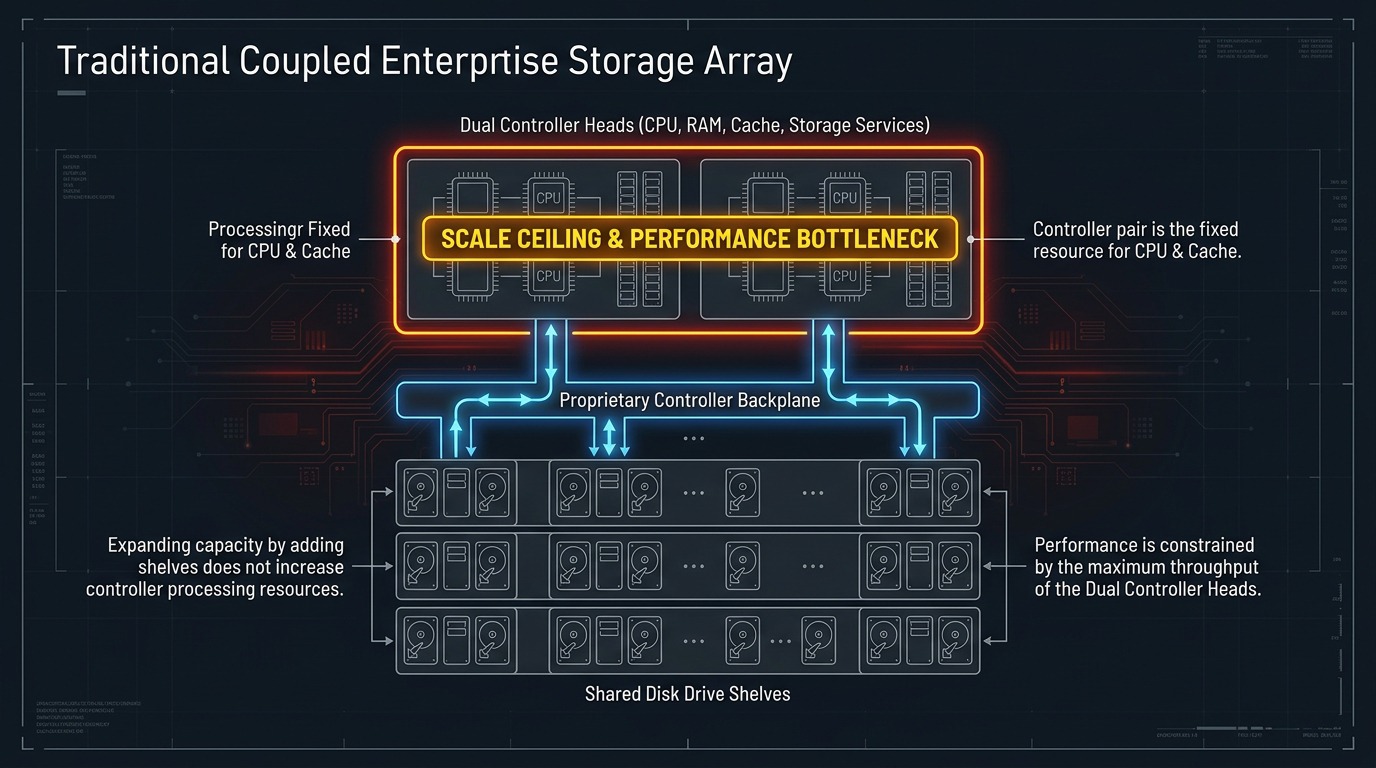

In a traditional storage array, compute resources (controllers) and storage media (disks) are physically and logically coupled. When you purchase additional capacity shelves, your storage throughput remains bound to the processing capabilities of the dual controller heads. Conversely, if you run out of controller CPU cycles due to encryption or metadata overhead, you are forced into an expensive controller forklift upgrade, even if 70% of your raw disk capacity sits empty.

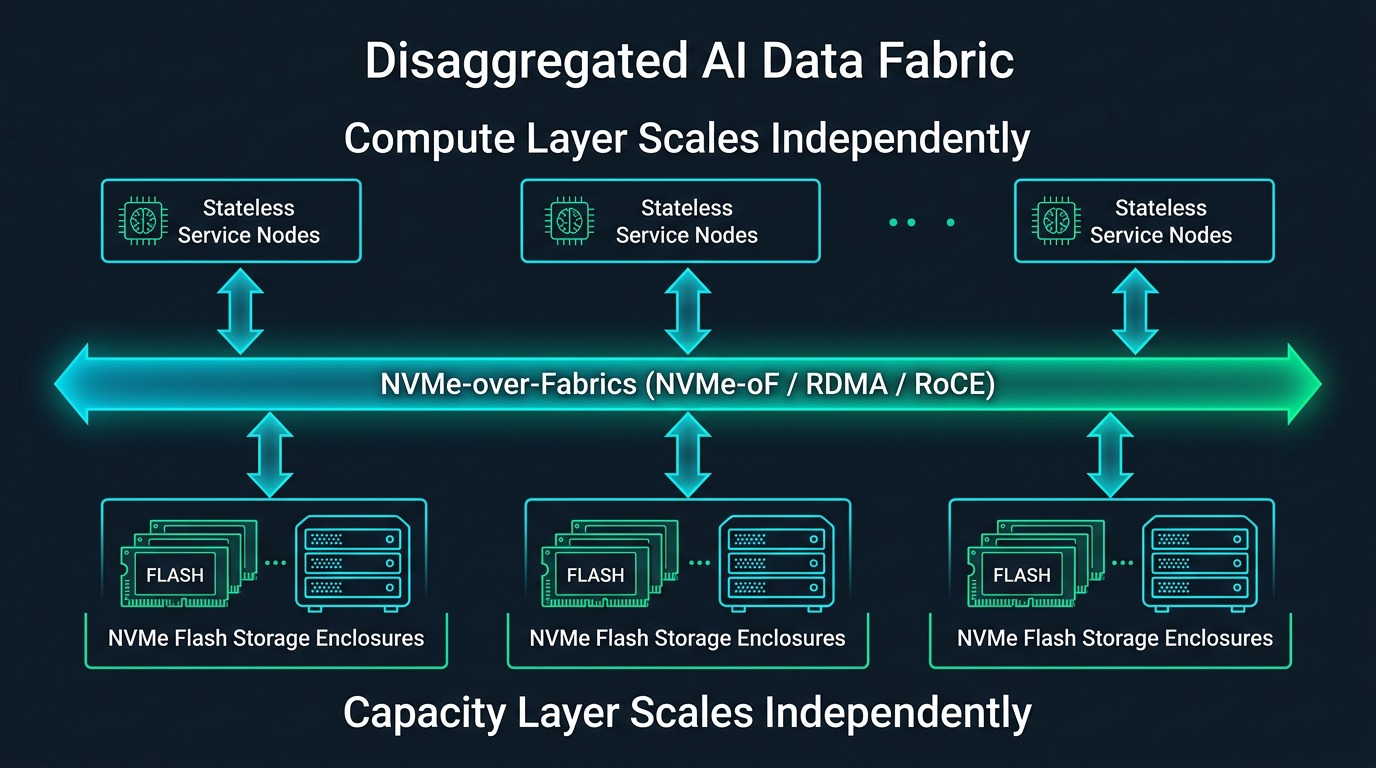

The Disaggregated Architecture

Disaggregation cleanly decouples the services responsible for processing storage requests from the media responsible for retaining data blocks:

Under a disaggregated paradigm, the compute-side storage services (stateless nodes or containerized engines) expand independently of physical media.

This asymmetry is vital for AI systems engineering:

• An LLM training cluster requires immense sustained bandwidth and massive checkpoint throughput, but might only process a 10-petabyte curated dataset. The operator can scale up compute service nodes to achieve 1 TB/s of bandwidth without over-purchasing flash capacity.
• A sovereign governmental archive might need to retain 100 petabytes of compliance records and multimodal video logs with modest retrieval rates. The operator can scale out high-density flash or object tiers without paying for superfluous high-performance storage processors.

However, disaggregation is not a silver bullet. Products can be software-defined without being fully disaggregated. They can be distributed without providing a unified shared-everything namespace. Understanding each vendor’s implementation details is crucial.

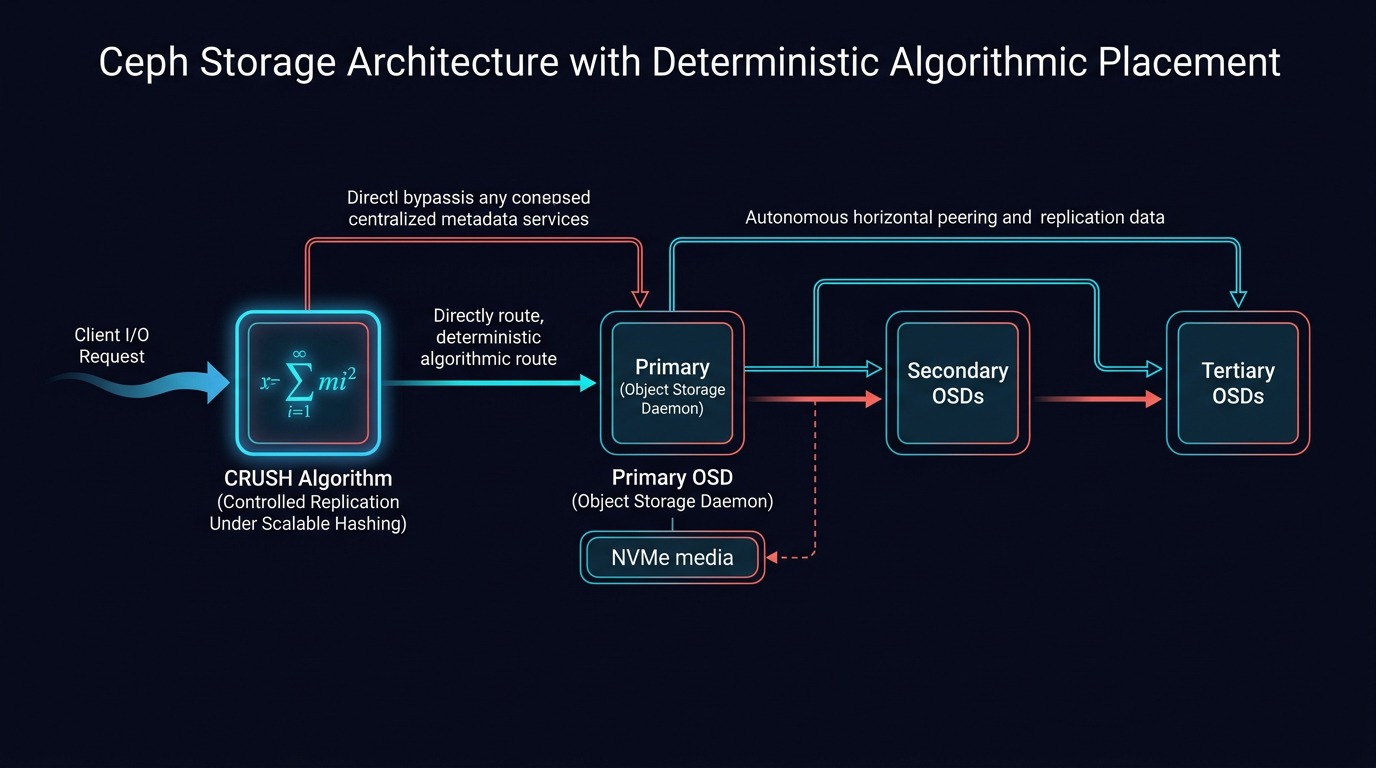

3. Ceph: The Open-Source Distributed Model

Ceph is the standard-bearer of open-source software-defined storage. At its heart sits RADOS (Reliable Autonomic Distributed Object Store), fronted by three native interfaces:

• RBD (RADOS Block Device): High-performance virtual disks for VMs and containers.
• CephFS: POSIX-compliant distributed filesystem.
• RGW (RADOS Gateway): S3- and Swift-compatible multi-tenant object storage.

Rather than maintaining a fragile centralized metadata index, Ceph utilizes the CRUSH (Controlled Replication Under Scalable Hashing) algorithm. Clients calculate data placement deterministically using an algorithmic hash of the object identifier and cluster topology map. Data is then written directly to storage daemons (OSDs).

Architectural Strengths & Operational Reality

• The Strengths: No vendor lock-in, commoditized x86/ARM hardware support, native OpenStack/Kubernetes integration, and powerful multi-tenancy.
• The Operational Cost: Ceph is famously demanding to operate at scale. Cluster rebalancing and OSD failure recoveries can generate immense internal network storms. If background recovery traffic is not rigorously throttled via dedicated public/cluster network separation, it will degrade client I/O and cause GPU training jobs to experience severe latency spikes.
• Modern Maturity: Ceph’s Tentacle release family (including the August 2026 20.2.4 security and stability update) demonstrates continued engineering refinement.

Architectural Assessment: Ceph is the premier choice for sovereign cloud platforms requiring open-source governance, transparent code auditability, and massive scale-out block and S3 object services. However, achieving sustained GPU-direct saturation for frontier LLM training often requires extensive engineering overhead compared to specialized parallel filesystems.

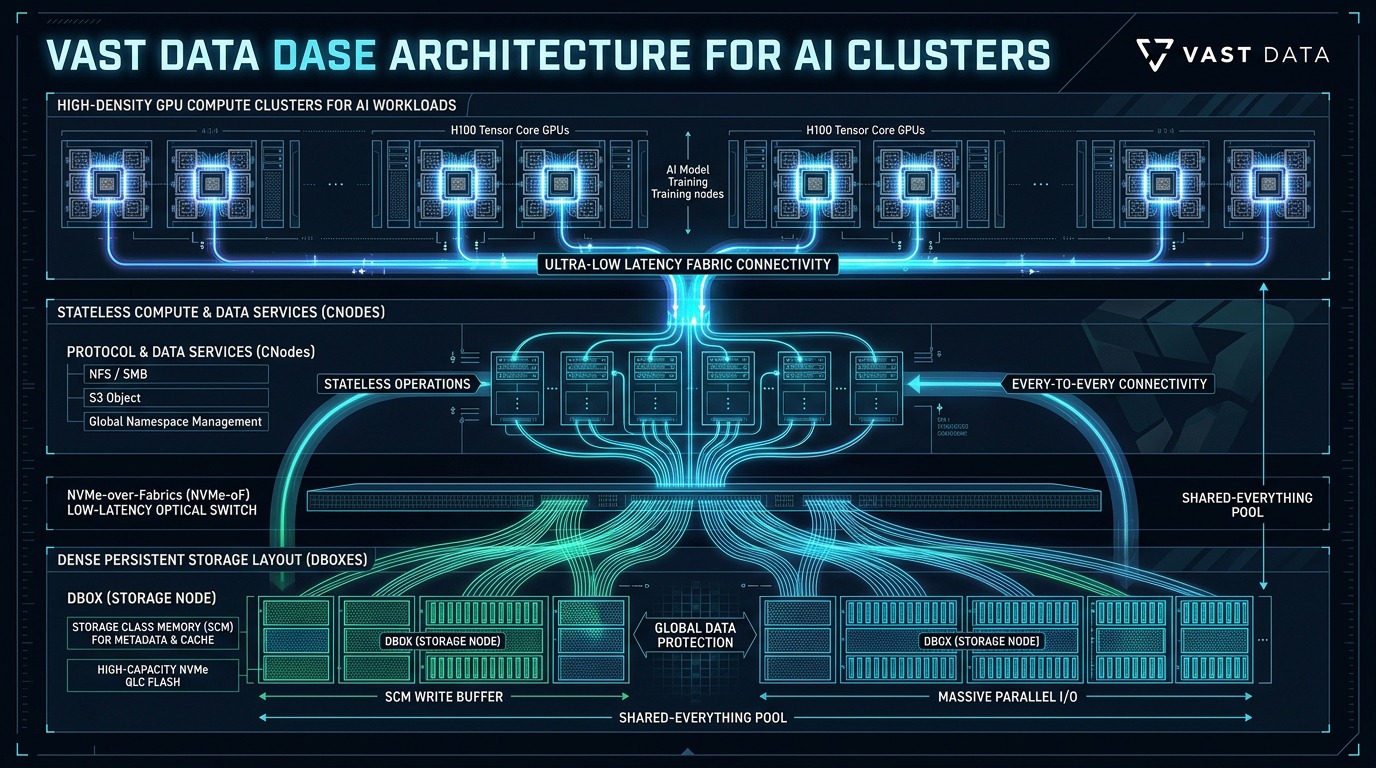

4. VAST Data: Disaggregated Shared-Everything (DASE)

VAST Data broke with conventional storage design by introducing the Disaggregated Shared-Everything (DASE) architecture.

In traditional “shared-nothing” clusters, each storage node owns a specific partition of drives and metadata. If Node A needs data owned by Node B, the request must traverse internal cluster interconnects, introducing metadata locking overhead and latency hops.

VAST eliminated node-level data ownership:

Core Innovations of DASE:

1. Stateless Compute Nodes (CNodes): CNodes handle protocol translation (NFS, S3), compression, and security. They hold no persistent state. If a CNode crashes, another CNode picks up the request instantly with zero failover penalty.
2. Shared Persistent Storage (DBoxes): High-density, cost-effective QLC flash drives coupled with ultra-low-latency Storage-Class Memory (SCM). Every CNode has direct, concurrent, equal access to all flash media across an NVMe fabric.
3. Global Metadata & Similarity Data Reduction: A unified global namespace with global deduplication and byte-granular similarity reduction that functions across disparate files and directories.

Architectural Assessment: VAST is engineered for massive AI data foundations. It eliminates file-to-object silos by allowing data written via S3 to be immediately read via high-performance NFS-over-RDMA without data copying. For sovereign clouds hosting hundreds of petabytes of multimodal AI datasets, VAST offers unmatched consolidation and efficiency.

5. WEKA & DDN: Parallel Filesystems for Accelerated Computing

When the primary engineering requirement is raw, unadulterated bandwidth to keep thousands of GPUs fully saturated, parallel filesystems lead the industry.

WEKA NeuralMesh

WEKA is an entirely software-defined parallel distributed filesystem built from the ground up for flash and high-bandwidth RDMA networks.

• Kernel-Bypass & User-Space Architecture: WEKA runs in Linux user-space, communicating directly with network adapters and NVMe drives via DPDK and SPDK, bypassing the operating system kernel and eliminating interrupt overhead.
• Distributed Metadata: Rather than relying on a centralized metadata server, metadata operations are distributed across the cluster via WEKA’s proprietary NeuralMesh clustering protocol.
• AI Memory Extensions (KV-Cache Support): In 2026, WEKA has pioneered persistent, distributed inference caching, allowing long-context LLM inference engines to offload and reload active Key-Value (KV) cache tensors directly to NVMe at sub-millisecond latencies.

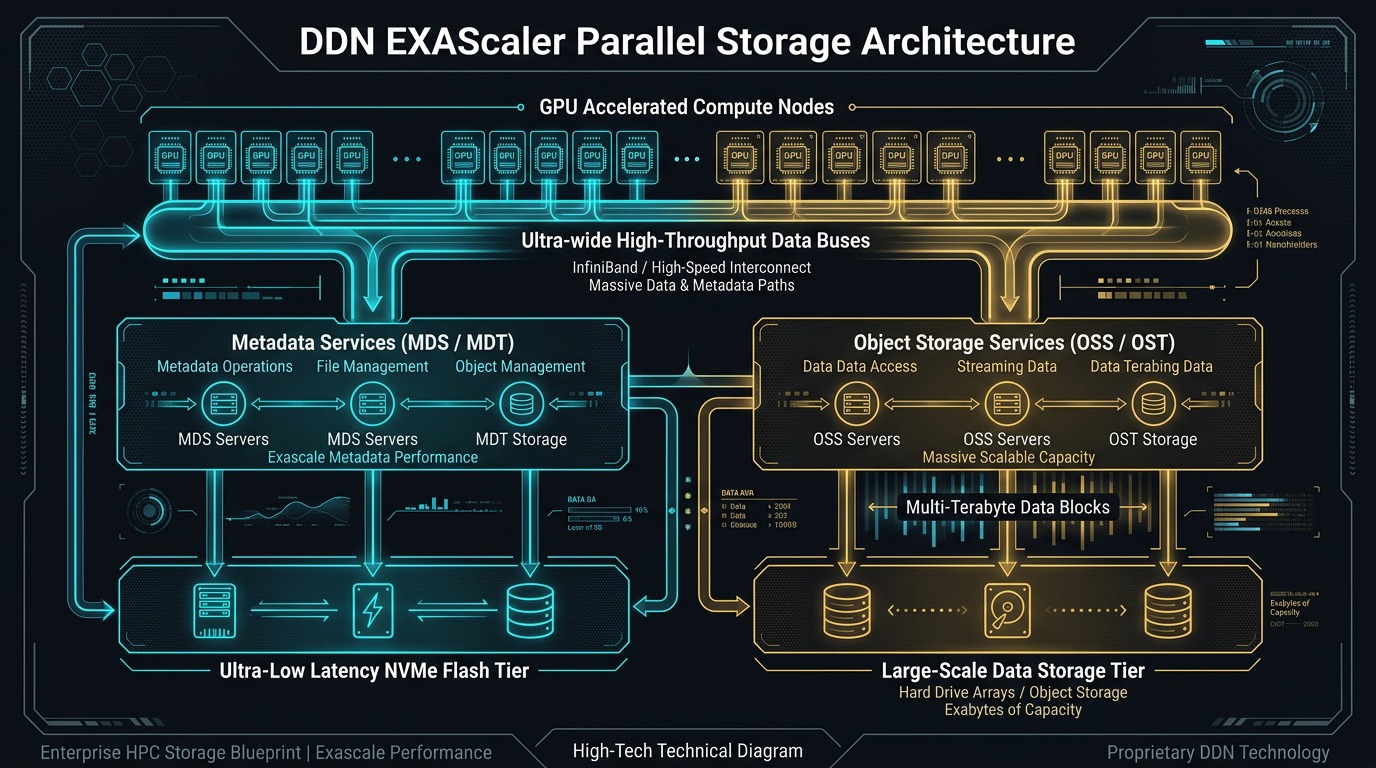

DDN EXAScaler & Infinia

DataDirect Networks (DDN) brings decades of high-performance computing (HPC) supercomputing heritage:

• EXAScaler: Built upon an enterprise-hardened Lustre foundation. EXAScaler separates Metadata Targets (MDT/MDS) from Object Storage Targets (OST/OSS), delivering blisteringly high sequential write throughput. It remains the gold standard for high-frequency model checkpointing in supercomputer clusters.
• DDN Infinia: DDN’s modern AI-native object and data-management architecture, engineered for S3-based retrieval, semantic indexing, and multi-tenant AI pipelines.

Architectural Assessment: WEKA and DDN are indispensable when training frontier models where every second of GPU stall translates to tens of thousands of dollars in lost compute efficiency.

6. Traditional Enterprise Vendors: NetApp AFX & Everpure FlashBlade//EXA

Legacy storage powerhouses have completely reinvented their architectures to meet AI demands:

NetApp AFX

Recognizing the limitations of coupled HA controller pairs, NetApp introduced AFX, a disaggregated architecture for ONTAP:

• Separates ONTAP compute nodes (processing storage logic and management) from capacity shelves via high-speed NVMe-oF and RoCE.
• Brings enterprise-grade ONTAP capabilities, including Snapshot copies, SnapMirror replication, and mature multi-tenancy, to GPU-scale AI workloads without controller head bottlenecks.

Everpure (Pure Storage) FlashBlade//EXA

Pure Storage (operating under Everpure) developed the FlashBlade//EXA architecture:

• Decouples the specialized, scalable FlashBlade Metadata Core from commodity high-density NVMe data storage nodes.
• Engineered explicitly to crush the checkpointing bottleneck in trillion-parameter foundation model training.

7. Master Comparison Matrix: Modern AI Storage Platforms

8. The Network Revolution: NVMe/TCP, RDMA, and GPUDirect Storage

The storage media is only one link in the pipeline. How data traverses the physical network from flash to GPU memory determines actual system efficiency:

1. NVMe/TCP: Transports NVMe commands over standard TCP/IP. It provides a massive leap over legacy iSCSI without requiring specialized switches. Ideal for general-purpose Kubernetes worker nodes and data preparation tiers.
2. NVMe/RDMA (RoCE v2 / InfiniBand): Enables direct memory transfers between storage targets and client hosts with zero CPU intervention. Critical for sub-100-microsecond latency and line-rate saturation.

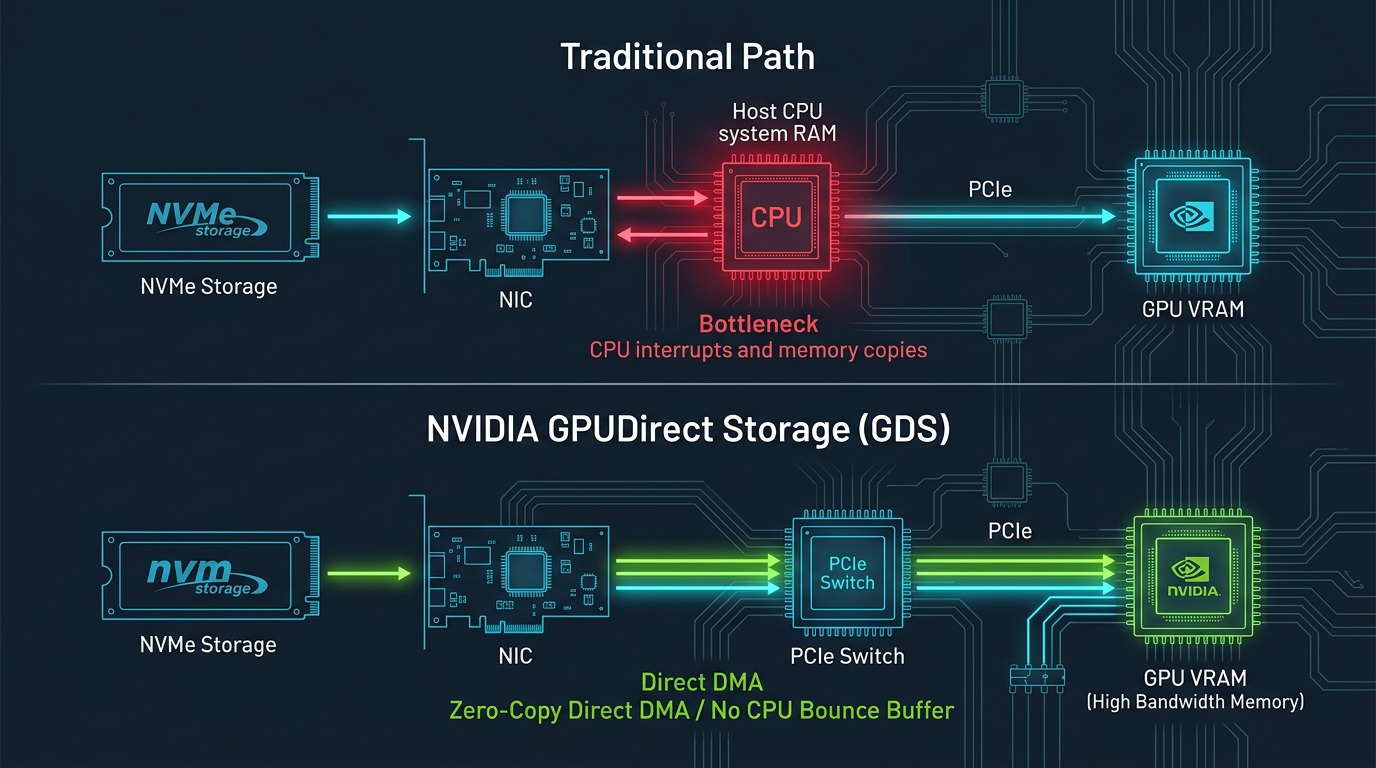

3. NVIDIA GPUDirect Storage (GDS): Bypasses the host CPU and operating system bounce buffers entirely. Storage I/O flows directly between the NVMe storage subsystem and the GPU’s High-Bandwidth Memory (HBM) via direct DMA transfers.

9. Published 2026 Benchmarks: MLPerf Storage v3.0

Rather than relying on synthetic vendor IOPS claims, the engineering community looks to MLPerf Storage v3.0 (published in September 2026). MLPerf models realistic, end-to-end AI workload behaviors, including data loaders, vector embedding pipelines, and massive checkpoint saves.

1.25-Trillion Parameter Model Checkpoint Comparison

In distributed training, foundation models periodically write their full parameter weights and optimizer states to disk. During a checkpoint write, GPU computation pauses. Every second spent checkpointing is wasted compute time.

(Data source: MLCommons Storage v3.0 peer-reviewed disclosures; StorageReview September 2026 analysis.)

Critical Engineering Caveat: Do not naively deduce that FlashBlade is “37% faster than Lustre.” These submissions reflect different cluster sizes, client node counts, network topologies, and capital costs. A rigorous RFP must normalise performance against usable gigabytes, rack footprint, power consumption, and price-per-GiB/s.

10. Real-World Economics: The Cost of Keeping GPUs Waiting

In enterprise AI engineering, storage is not an isolated cost center. It is an insurance policy on GPU productivity.

Consider an enterprise AI cluster containing 256 high-end accelerators:

• Effective compute cost (amortized hardware, power, cooling, software): $4.00 per GPU-hour
• Annual compute expenditure: 256 GPUs × $4.00/hr × 8,760 hrs = $8,970,240 / year

If an under-engineered storage architecture causes the data loader to bottleneck, forcing GPUs to idle for just 10% of their operational time:

Annual Value at Risk = 256 GPUs × $4.00/hr × 8,760 hrs × 10% Idle = $897,024 / year

Nearly $900,000 in capital value is incinerated every year solely because the storage fabric cannot feed the accelerators fast enough.

A storage platform that costs $300,000 more upfront but eliminates this 10% I/O wait delivers an immediate, massive positive return on investment.

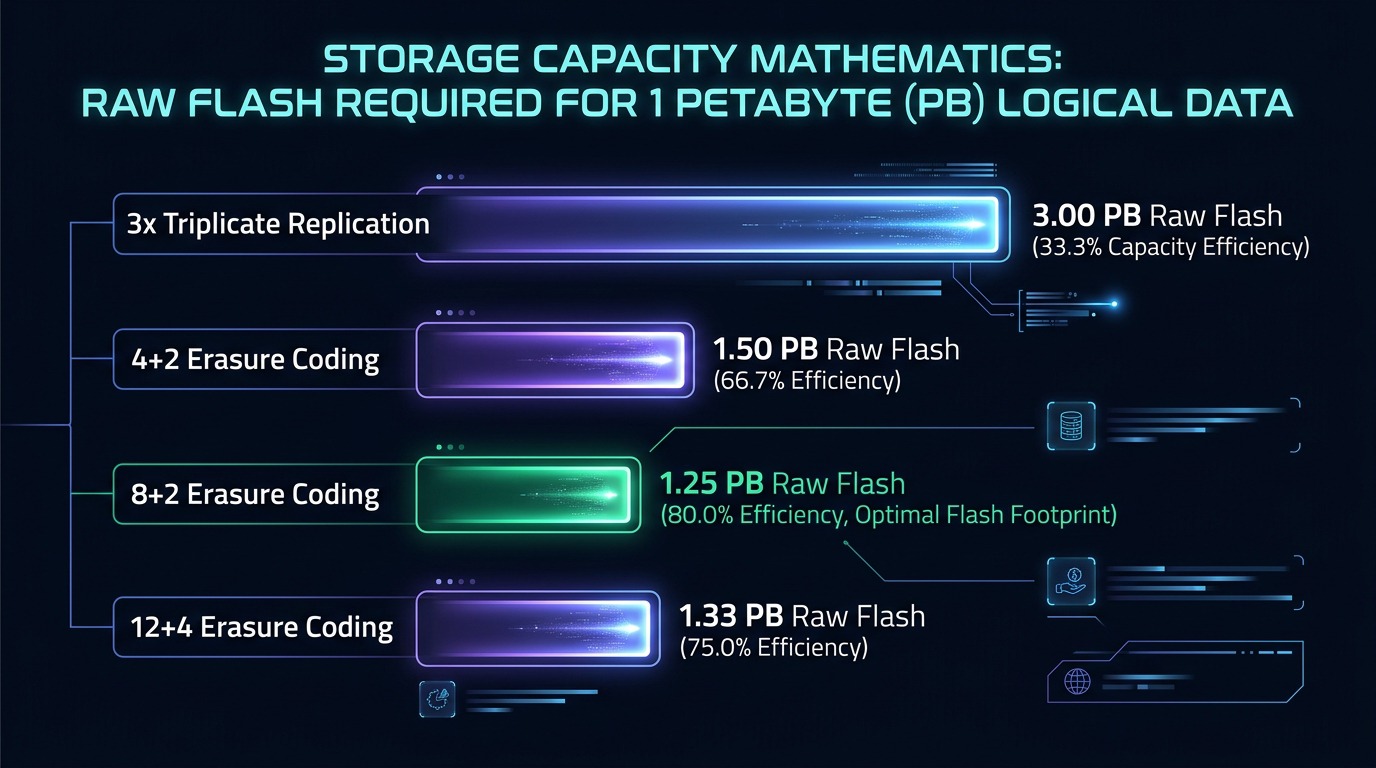

11. Capacity Mathematics: Replication Versus Erasure Coding

Data durability design heavily impacts data center footprint and procurement budgets. Storing 1 Petabyte of logical data requires dramatically different raw flash capacity depending on the protection geometry:

• 3x Replication: Simplest recovery path with zero CPU parity computation, but triples raw drive costs (3.00 PB raw per 1.0 PB logical).
• Erasure Coding (e.g., 8+2 or 12+4): Slashes raw flash requirements down to 1.25–1.33 PB. However, it introduces parity calculation overhead, write amplification during small random updates, and heavy cross-rack reconstruction traffic during drive failures.

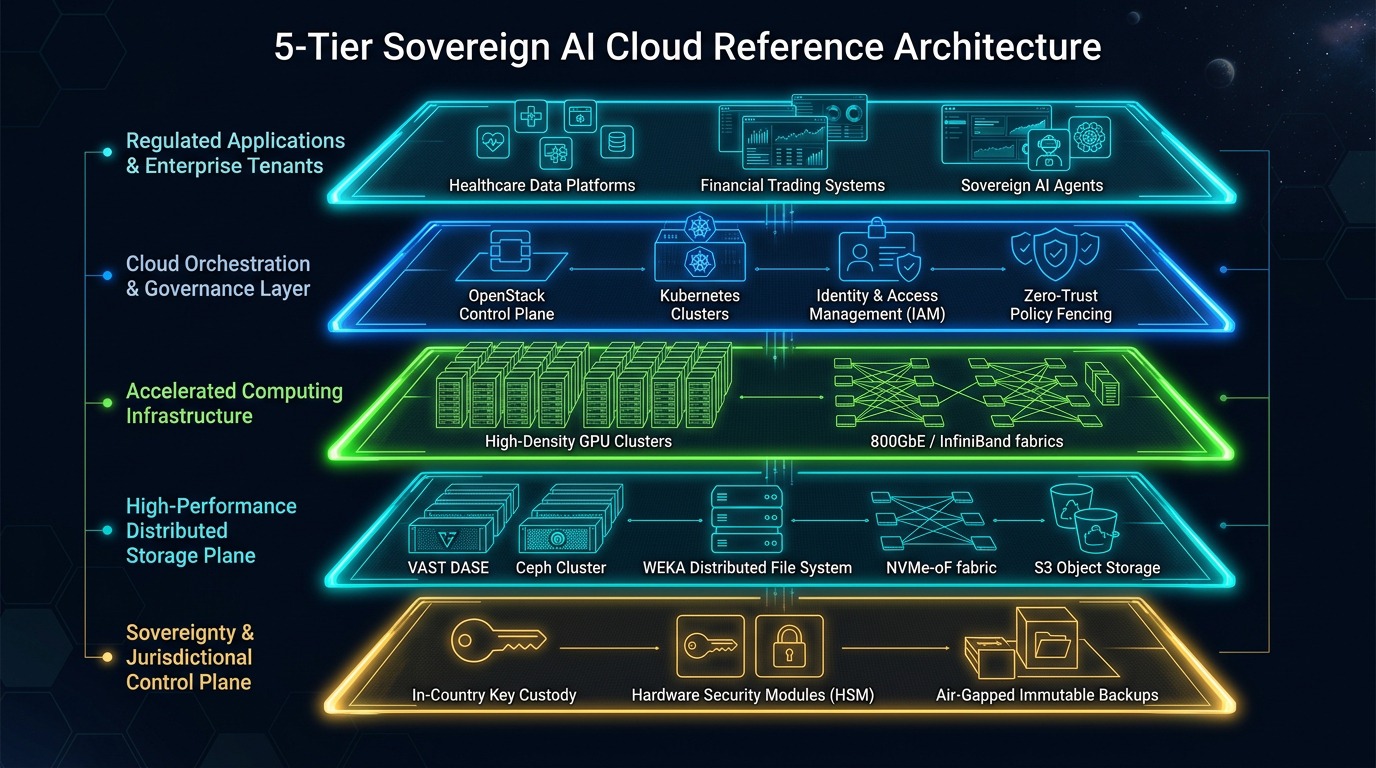

12. A Real-World Sovereign Case: G42, Core42 and the UAE AI Cloud

The deployment of national-scale AI infrastructure in the United Arab Emirates provides a masterclass in modern systems architecture:

• August 2023: G42 Cloud partnered with VAST Data to build a multi-hundred-petabyte AI data foundation powered by the DASE architecture.
• July 2026: Core42 and e& UAE announced a sovereign compute partnership to deliver in-country enterprise AI infrastructure.

The 6 Non-Negotiable Pillars of True AI Sovereignty:

1. Data Residency: All raw data, training weights, logs, and derived embedding vectors physically reside within the national borders.
2. Cryptographic Key Sovereignty: Customer-Managed Encryption Keys (CMEK) held in dedicated, on-premises Hardware Security Modules (HSM) with no external escrow dependencies.
3. Administrative & Operational Sovereignty: Control planes, hypervisors, and storage controllers administered exclusively by vetted in-country personnel.
4. Tenant Micro-Segmentation: Cryptographically isolated namespaces preventing data or cache bleeding between competing government or corporate entities.
5. Auditable Data Trajectories: Immutable, cryptographically signed ledger logging every read, export, or fine-tuning invocation.
6. Air-Gapped Disaster Recovery: Ability to recover complete cluster operations during international network partition events.

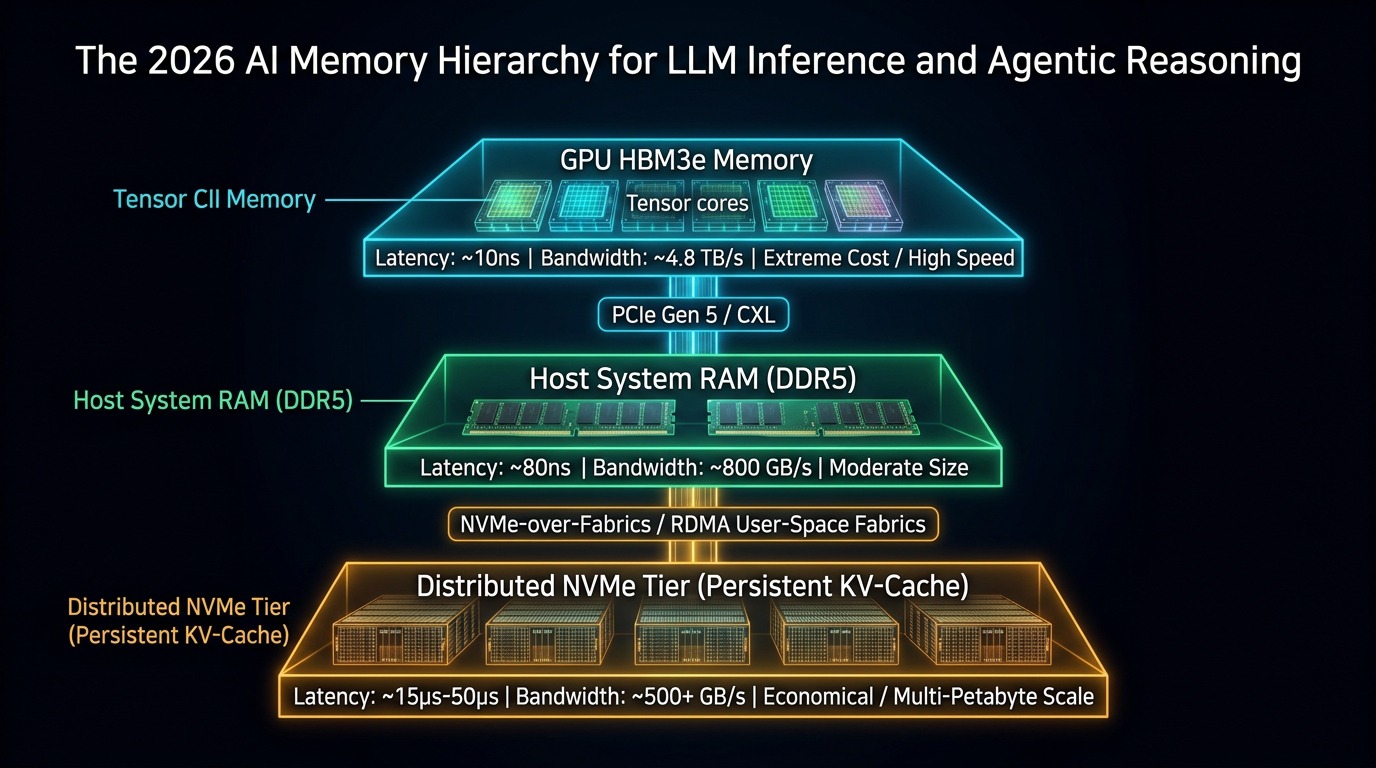

13. The Next Frontier: Storage as an Extension of AI Memory

The newest frontier in storage systems engineering directly impacts long-context agentic reasoning.

Large language models rely on the Key-Value (KV) cache to store pre-computed attention states during multi-turn interactions. As context windows expand to 1M+ tokens and thousands of autonomous agents operate concurrently, storing active KV caches entirely inside ultra-expensive GPU High-Bandwidth Memory (HBM) becomes economically unviable.

Leading AI storage engines (including WEKA and dedicated research harnesses) are transforming flash storage into a dynamic tier of the system memory hierarchy:

By streaming serialized KV-cache tensors to low-latency distributed NVMe fabrics and restoring them on demand, inference platforms eliminate redundant prompt processing, reducing time-to-first-token (TTFT) by up to 80% while dramatically lowering inference token costs.

14. The Enterprise Architect’s RFP Checklist

Before issuing a Request for Proposal (RFP) for AI storage, systems architects must move past raw marketing numbers and test realistic failure domains:

• 1. Workload Profiling: Have you characterized your exact ratio of sequential training reads versus concurrent burst checkpoint writes?
• 2. Small-File Metadata Concurrency: Can the filesystem ingest 10 million sub-64KB files without metadata starvation?
• 3. Sustained P99 Latency Under Load: What is the 99th-percentile tail latency when the cluster is operating at 85% capacity utilization?
• 4. Fault Domain & Rebuild Degradation: If two storage nodes or drive shelves fail concurrently during an active training run, what percentage of read throughput is lost to background parity reconstruction?
• 5. Fabric & Transport Protocol: Does the solution require dedicated InfiniBand fabrics, or can it operate over RoCE v2 with Congestion Notification (ECN/PFC)?
• 6. GPUDirect Storage Verification: Is the complete client software stack validated with NVIDIA GDS end-to-end?
• 7. Unified File & S3 Object Semantics: Can datasets ingested via S3 be processed immediately by high-performance POSIX file clients without duplication?
• 8. Key Custody & HSM Integration: Does the platform support external, customer-held KMIP-compliant Key Management Services?
• 9. Real-World Power & Thermal Density: What is the sustained throughput delivered per rack unit and kilowatt of power?
• 10. Compute-Waiting ROI Model: Have you normalized the purchase price against the total cost of potential GPU idle time?

Conclusion: Storage Architecture Is AI Architecture

The transition from Fibre Channel SANs to distributed, disaggregated AI data fabrics represents more than an incremental hardware upgrade. It reflects a fundamental transformation in how computing systems generate and utilize intelligence.

• Ceph demonstrates the enduring viability of open-source software-defined governance.
• VAST Data proves the power of disaggregated shared-everything architectures for multi-petabyte unified AI foundations.
• WEKA & DDN highlight why parallel filesystems and kernel-bypass I/O remain essential for accelerator saturation.
• NetApp AFX & Everpure FlashBlade//EXA demonstrate that enterprise titans are aggressively adapting to meet trillion-parameter checkpointing realities.

For systems engineers and architects building sovereign AI infrastructure, the ultimate question is no longer simply: “How many petabytes can this array hold?”

The decisive question is: “How efficiently, reliably, and securely can our storage fabric transform those petabytes into actionable intelligence without leaving our most expensive accelerators waiting?”

That is the true frontier of AI systems engineering.

Research & Further Reading

• G42 & VAST Data Strategic Partnership
• Core42 & e& UAE Sovereign AI Compute Initiative
• MLCommons MLPerf Storage v3.0 Benchmark Suite
• StorageReview MLPerf Storage v3.0 Checkpoint Analysis
• VAST Data Disaggregated Shared-Everything (DASE) Whitepaper
• WEKA NeuralMesh Technical Architecture Guide
• Ceph Distributed Architecture Documentation
• NetApp ONTAP AFX Disaggregated Architecture
• NVIDIA GPUDirect Storage (GDS) Design Guide

Editorial Note: Published benchmarks and vendor architecture specifications reflect documented configurations at time of analysis. Engineering assessments reflect independent architectural interpretation with zero sponsored ranking placements.
