Inside the AI Memory Wall: GPU HBM, KV Cache, NVMe Fabrics and WEKA NeuralMesh

Luca Viscomi

· Published Oct 15, 2026 · Updated Oct 15, 2026 · 32 min read

In modern enterprise computing, an uncomfortable truth has emerged across large language model (LLM) deployments:

Your GPUs are not starving because they lack raw compute. They are starving because they have hit the AI Memory Wall.

When engineering teams design an AI serving cluster, the immediate focus is almost always on FLOPs: how many PFLOPS of FP8 tensor compute are packed into an 8-way NVIDIA H100, H200, or B200 HGX chassis. The assumption is that once model weights are loaded into GPU High Bandwidth Memory (HBM), the job of the storage system is finished.

In reality, serving production AI workloads (such as autonomous coding assistants, multi-turn enterprise agents, and long-document RAG pipelines) reveals a radically different operational bottleneck.

While static model weights occupy a fixed, predictable footprint, the dynamic attention states generated by concurrent user sessions, known as the Key-Value (KV) cache, grow linearly with context length and concurrently active streams. Within minutes of a traffic surge, GPU HBM is completely saturated. When accelerator memory runs out, inference engines are forced to either reject new requests, throttle concurrency, or prematurely evict cached conversation histories.

Evicting the cache, however, triggers a catastrophic computational penalty: the next time that user or autonomous agent sends a turn, the GPU cluster must recalculate every single attention matrix from scratch. At 100,000 to 1,000,000 tokens of context, recomputing the prompt prefill can take tens of seconds of 100% GPU utilization, torching millions of dollars in idle capacity and destroying interactive latency.

To solve this dilemma, AI systems engineering is executing a fundamental architectural pivot: turning GPU memory, host server DRAM, and distributed parallel NVMe flash storage into one unified, coordinated memory hierarchy.

In this deep dive, we deconstruct the physics of the AI Memory Wall. We examine the exact lifecycle of an inference request, the mathematical mechanics of KV-cache memory pressure, the networking data paths required for microsecond-scale offloading, and how software-defined parallel storage architectures, specifically WEKA NeuralMesh and its Augmented Memory Grid, are redefining the economics of hyperscale AI inference.

1. The AI Memory Wall

To understand the severity of the Memory Wall, consider a relatable production scenario:

An enterprise AI platform serves 2,000 concurrent enterprise software engineers using an autonomous coding assistant. Each engineer works in a repository session containing between 100,000 and 500,000 tokens of indexed AST skeletons, open file buffers, lint diagnostics, and multi-turn debugging transcripts.

The model in production is a 70-billion parameter transformer running across a cluster of 8-way NVIDIA H100 SXM5 nodes (each node providing 640 GB of aggregated HBM3).

The static model parameters consume approximately 140 GB of HBM in FP16 precision (or ~70 GB in FP8). On paper, each node has over 500 GB of free accelerator memory. The engineering leadership expects the cluster to easily handle dozens of concurrent developers per server.

Then the system goes live under full production traffic.

Within seconds, the inference engine (such as vLLM or TensorRT-LLM) exhausts every gigabyte of free HBM. GPU memory allocation hits 99.8%. The scheduler begins queueing requests. Time to First Token (TTFT) spikes from 250 milliseconds to over 18 seconds. Meanwhile, the actual GPU Tensor Core compute utilization drops below 25%.

The GPUs are physically capable of executing quadrillions of calculations per second, but their compute engines sit completely idle, waiting on memory transactions.

Three critical performance metrics govern this ceiling:

1. Time to First Token (TTFT): The latency between when an inference request reaches the cluster and when the first generated token is emitted. TTFT is dominated by the prefill phase, where all input prompt tokens are processed simultaneously. If the prompt context must be recomputed because the prior KV cache was evicted, TTFT spikes proportionally to prompt length.
2. Tokens Per Second (TPS / Throughput): The rate at which the cluster emits generation tokens during the decode phase. Decode is memory-bandwidth bound: for every single token produced, the model must read all its parameters and all accumulated KV cache tensors across the memory bus.
3. GPU Utilization & Cost Efficiency: At $3.00 to $5.00 per hour per high-end accelerator, stranded GPU capacity represents a multi-million-dollar operational loss. If a GPU spends 40% of its operating cycle stalled on memory allocation failures or recomputing identical prompt prefixes, the cost per generated million tokens doubles.

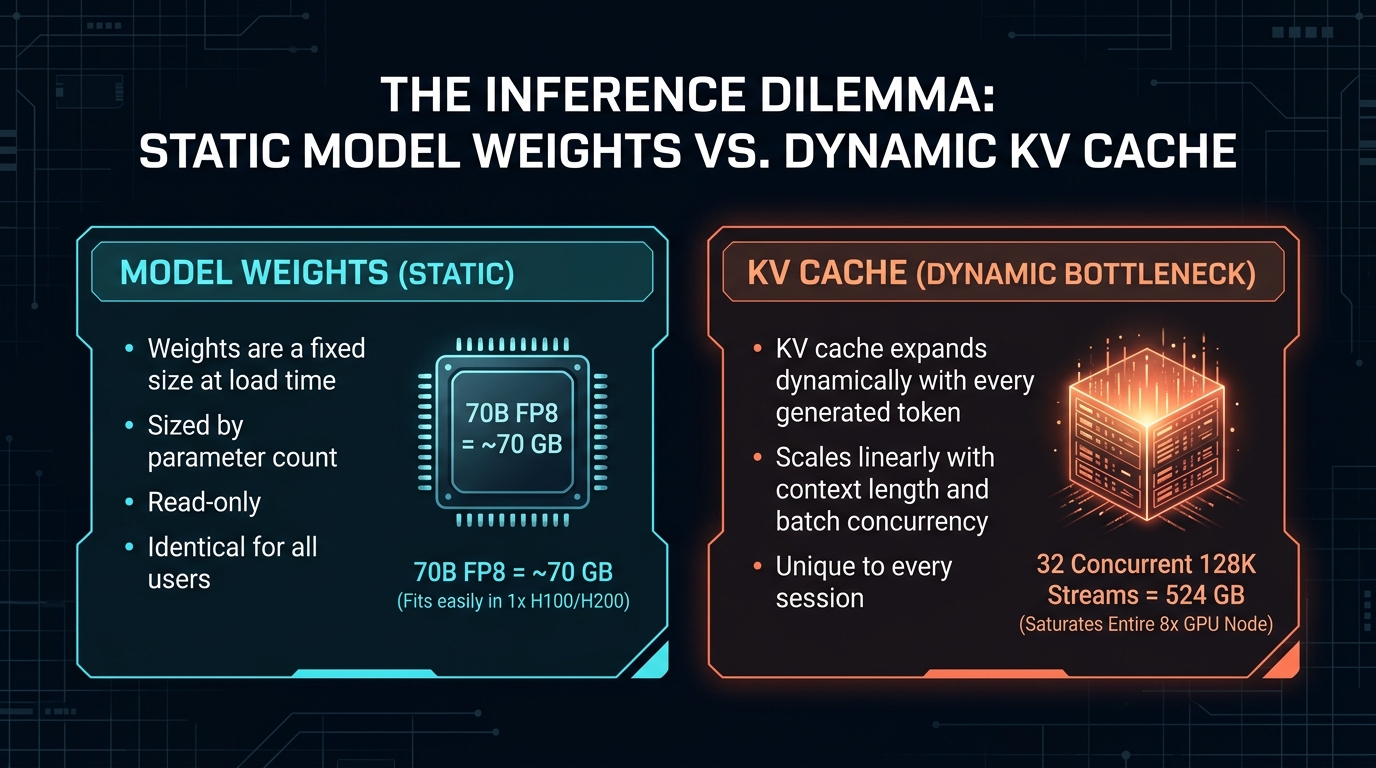

The central engineering challenge is this: Model weights are not the same thing as the KV cache. Model weights are read-only and static. The KV cache is dynamic, stateful, session-specific, and extraordinarily memory-hungry.

2. What Actually Happens During LLM Inference?

To engineer storage and memory systems for inference, we must dissect the execution lifecycle of a transformer request.

An autoregressive transformer does not process inference as a uniform, continuous stream. Instead, every inference request splits into two fundamentally asymmetrical execution phases: Prefill and Decode.

Phase 1: The Prefill Phase (Compute-Bound)

When a prompt enters the inference engine, the model processes all input tokens simultaneously in a single forward pass:

1. Tokenization & Embedding: Raw text strings are mapped to discrete integer tokens using a Byte-Pair Encoding (BPE) tokenizer. The integer tokens are projected into continuous vector space through an embedding matrix.
2. Attention Projections (Q, K, V): At each transformer layer, the token vectors are multiplied by learned weight matrices to generate three distinct tensor representations:
   • Query (Q): What this token is searching for in the sequence context.
   • Key (K): What information this token contains that other tokens might care about.
   • Value (V): The actual semantic content passed forward if an attention match occurs.
3. Scaled Dot-Product Attention: The Query and Key matrices are multiplied (Q × K^T), scaled by the square root of the head dimension (sqrt(d_k)), masked, and passed through a softmax function to produce the attention score matrix:

Attention(Q, K, V) = softmax( (Q × K^T) / sqrt(d_k) ) × V

4. KV-Cache Allocation: Because the input tokens are now fully processed, their resulting Key and Value tensors are saved into memory as the initial KV cache.

Computational Characteristic: Prefill exhibits high arithmetic intensity. Because the entire sequence ($N$ tokens) is computed in parallel as large matrix-matrix multiplications (GEMM), the GPU Tensor Cores are fully utilized. Prefill is heavily compute-bound.

Phase 2: The Decode Phase (Memory-Bandwidth-Bound)

Once the prefill phase completes, the model generates output tokens one by one in an autoregressive loop:

1. Single Token Projection: In step $t$, only the single most recently generated token is fed into the network. It generates a single Query vector $Q_t$, a Key vector $K_t$, and a Value vector $V_t$.
2. KV Cache Streaming: To calculate attention for this new token across the entire preceding conversation, the GPU does not recompute previous tokens. Instead, it loads all historical Key and Value tensors from memory.
3. Attention Computation: The single query vector $Q_t$ is multiplied against the entire accumulated $K$ cache ($1 \dots t$) and weighted against the $V$ cache.
4. Cache Appending: The new $K_t$ and $V_t$ vectors are appended to the KV cache in memory.
5. Logit Sampling: The output layer produces probability logits across the vocabulary, a token is sampled, and the cycle repeats for token $t+1$.

Computational Characteristic: Decode exhibits very low arithmetic intensity. The GPU performs a matrix-vector multiplication (GEMV). The accelerator must read hundreds of gigabytes of model weights and KV cache tensors from memory just to perform a tiny number of calculations for that single token.

Decode is strictly memory-bandwidth-bound. The GPU compute units spend the vast majority of their clock cycles waiting for data to travel across the memory bus from HBM into the register files.

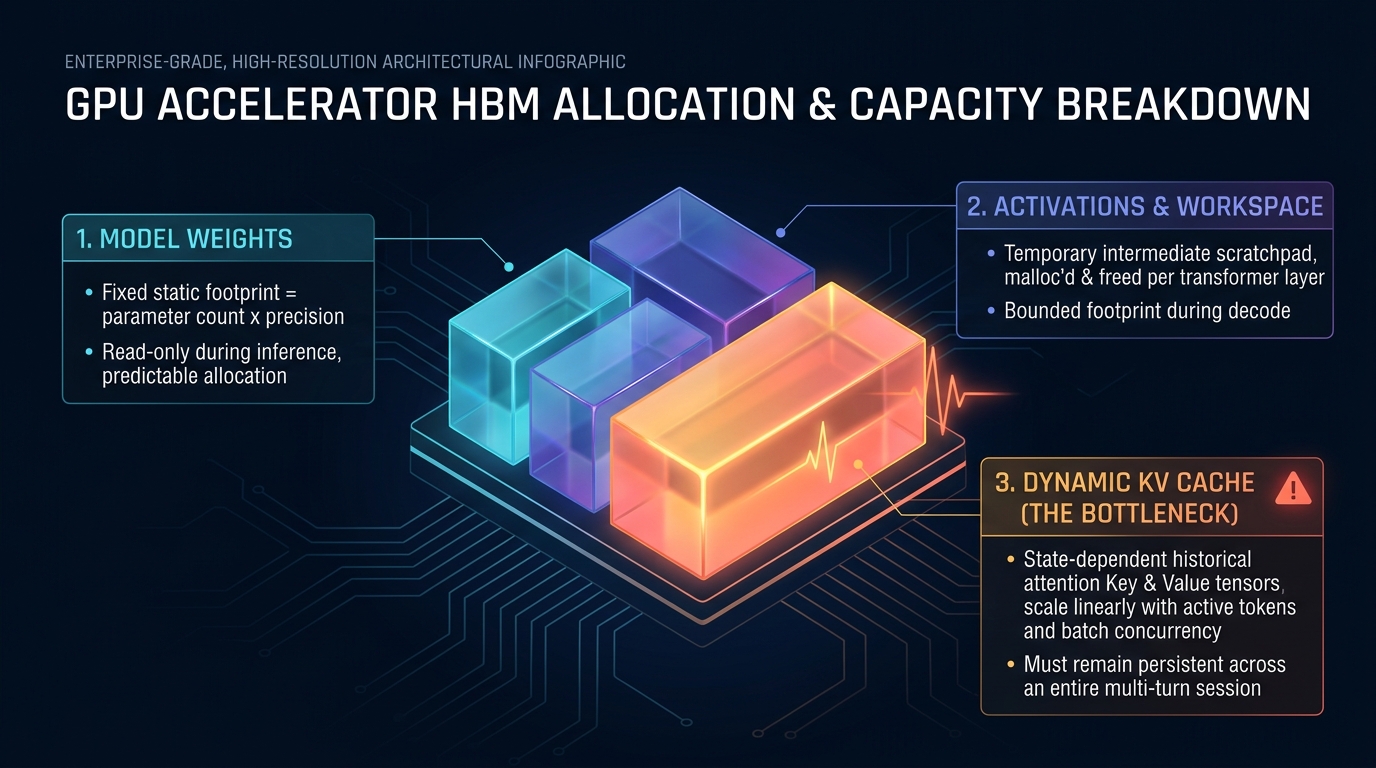

3. Model Weights, Activations, and the KV Cache

To properly architect memory tiers, systems engineers must categorize the three distinct consumers of accelerator memory during inference:

1. Model Weights (Parameters):
   The mathematical weights learned during pre-training and fine-tuning. They are immutable during inference. Sizing is deterministic: an 8B parameter model in FP16 requires approximately 16 GB; a 70B parameter model in FP8 requires approximately 70 GB.
2. Activations and Working Buffers:
   Temporary memory buffers required to hold intermediate mathematical results (layer normalization, residual connections, logits, and attention scratchpads) as tensors flow through transformer blocks. Once a layer finishes execution, its activation memory is released and reused for the next layer. In autoregressive decoding, activation memory is small and bounded.
3. The Key-Value (KV) Cache:
   The accumulated historical attention state. Unlike activations, the KV cache cannot be freed between tokens. It must be preserved across every single step of generation. If the context contains 200,000 tokens, the inference engine must retain the Key and Value matrices for all 200,000 tokens across all 80 transformer layers for the duration of the conversation.

What the KV Cache Is Not

In enterprise technical discussions, the KV cache is frequently confused with other software components. To maintain architectural precision:

• The KV cache is NOT chat history: Chat history is raw human-readable ASCII or UTF-8 text stored in a database (like PostgreSQL or Redis). The KV cache consists of post-attention, floating-point embedding tensors that have already passed through the model’s neural network.
• The KV cache is NOT a vector database: A vector database stores dense document embeddings used for semantic search during RAG. The KV cache contains the intermediate attention states of the active transformer layers during execution.
• The KV cache is NOT persistent agent memory: Persistent agent memory (such as structured memory graphs or episodic summaries) consists of external factual information retrieved into a prompt. The KV cache is a low-level computational execution artifact.

4. The GPU and Storage Memory Hierarchy

Because GPU HBM is physically co-packaged on silicon interposers (using technologies like CoWoS), its capacity is strictly capped by physical packaging, thermal limits, and manufacturing yields. As of 2026, top-tier enterprise GPUs max out at 80 GB (H100), 141 GB (H200), or 192 GB (B200).

When thousands of concurrent users require hundreds of thousands of context tokens, keeping every active KV cache resident in Tier 1 HBM is economically and physically impossible.

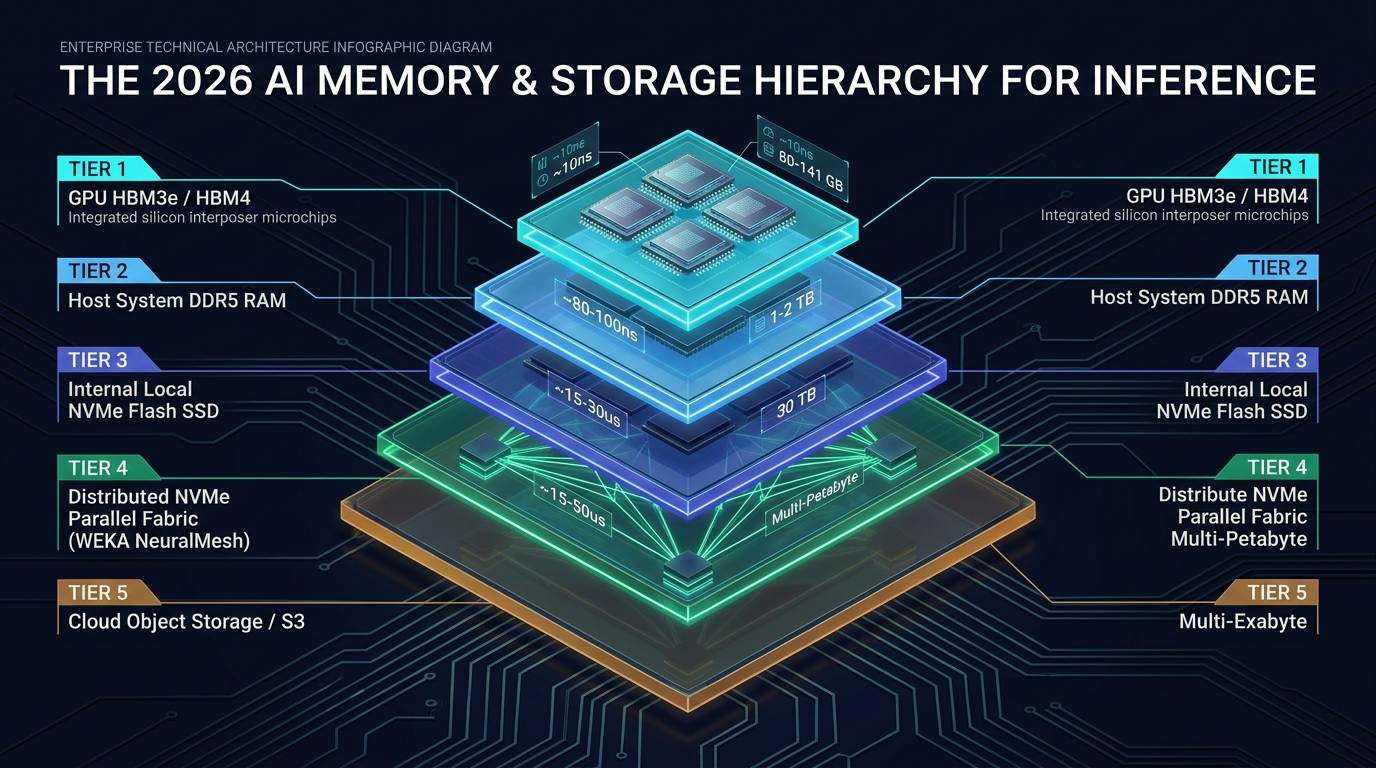

Inference infrastructure must therefore be designed as a tiered memory hierarchy:

[!NOTE] Architectural Precaution on Tier Numbering:
The designations Tier 1 through Tier 5 represent an explanatory engineering convention, not a universal hardware standard. Real-world inference runtimes do not stream data sequentially down each tier like a waterfall. Depending on software integration, an inference engine may swap directly between Tier 1 (GPU HBM) and Tier 2 (Host RAM), or leverage GPUDirect Storage over RDMA to move KV blocks directly between Tier 1 (HBM) and Tier 4 (Distributed NVMe Fabric), bypassing Tier 2 and Tier 3 entirely.

• Tier 1: GPU High Bandwidth Memory (HBM3e / HBM4):
  Latency: ~10 ns | Bandwidth: 3.5 – 4.8 TB/s | Capacity: 80 – 192 GB per GPU
  The ultra-high-speed primary working memory physically coupled to GPU execution cores. Mandatory for active token calculation. Extremely scarce and expensive.
• Tier 2: Host System Memory (DDR5 DRAM):
  Latency: ~80 – 100 ns | Bandwidth: 400 – 800 GB/s | Capacity: 512 GB – 2 TB per server
  CPU-attached system memory accessed over the PCIe Gen 5 bus or CXL interconnects. Provides a 10x larger capacity buffer at the cost of an 8x latency penalty. Primary staging area for traditional CPU offload implementations.
• Tier 3: Local High-Performance NVMe Flash (PCIe Gen 5 SSDs):
  Latency: ~15 – 30 µs | Bandwidth: 14 – 28 GB/s | Capacity: 3.84 – 30 TB per server
  Direct-attached solid-state drives located inside the physical GPU server chassis. Offers massive local capacity, but data is strictly isolated within that single physical box.
• Tier 4: Distributed NVMe Storage Fabric (e.g., WEKA NeuralMesh):
  Latency: ~15 – 50 µs | Bandwidth: Hundreds of GB/s to TB/s aggregate | Capacity: Multi-Petabyte
  A shared, software-defined parallel storage fabric aggregating NVMe flash across a network cluster over RoCE v2 or InfiniBand. Provides near-local flash latencies with massive aggregate parallel throughput, global cluster accessibility, and high-availability data protection.
• Tier 5: Durable Capacity & Object Storage (Amazon S3 / Ceph RGW):
  Latency: ~10 – 50 ms | Bandwidth: Scalable streaming | Capacity: Multi-Exabyte
  Durable cloud object storage used for permanent cold model checkpoints, pre-training corpus archives, and deep system backups. Far too slow for active token generation.

5. KV-Cache Offloading and Reloading

To prevent GPU HBM from running out of memory, modern inference runtimes (such as vLLM with PagedAttention) manage KV cache memory not as contiguous monolithic arrays, but as discrete virtual memory pages (blocks), typically sized at 16 or 32 tokens per block.

This virtual paging mechanism enables KV-Cache Offloading:

The Cache Lifecycle

1. Generation & Paging: During the prefill phase, the inference engine allocates physical memory blocks in GPU HBM to store the incoming tokens’ Key and Value tensors.
2. Identification for Offload: When a conversation turn concludes or memory pressure reaches a predefined high-water mark (e.g., 85% of HBM), the runtime’s cache manager identifies idle, non-generating blocks.
3. Asynchronous Transfer: The identified KV blocks are serialized and written asynchronously over the network fabric to an external tier (such as a WEKA distributed NVMe filesystem). Because the write is asynchronous, it does not block the active decoding of ongoing streams.
4. Eviction from HBM: Once safely committed to the external storage tier, the physical HBM blocks are released back to the free memory pool.
5. Stateful Cache Indexing: The runtime maintains a global index (typically a prefix tree or radix hash table) mapping the sequence of prompt token hashes to their offloaded block locations on the storage fabric.
6. Subsequent Request & Cache Hit: Minutes or hours later, the user sends a follow-up prompt. The inference gateway checks the prompt prefix against the global index. If a prefix match is found (a Cache Hit), the engine requests those exact blocks from the storage tier.
7. Line-Rate Restoration: The KV blocks are transferred directly back into GPU HBM.
8. Bypassing Prefill: The GPU completely bypasses the computationally expensive prefill phase for all matched tokens. Decoding begins immediately at token $N+1$.

Cache Compatibility Constraints

KV-cache offloading is not a magic universal buffer. Cached KV tensors can only be reused if strict architectural conditions are met:

• Identical Model Architecture & Checkpoint: A KV cache generated by Llama-3-70B cannot be decoded by Mistral-Large, nor can it be reused if the underlying model weights are updated or fine-tuned.
• Identical Token Sequence & Positions: Transformer attention incorporates positional embeddings (such as RoPE). If even a single token in the prefix changes (e.g., modifying a system prompt instruction or inserting a timestamp), all downstream Key vectors change, invalidating the entire subsequent cache chain.
• Tensor Parallelism (TP) Rank Compatibility: In multi-GPU deployments, model layers and attention heads are sharded across GPUs. A KV cache block generated on a 4-way tensor-parallel cluster must be reloaded with the exact same attention head sharding layout.
• Quantization Format: If KV blocks are saved in FP16, they cannot be loaded directly into an engine configured for FP8 without on-the-fly dequantization overhead.

6. Why Does Parallel Storage Matter?

When systems architects first explore KV-cache offloading, a common question arises:

Why invest in a complex, distributed parallel storage tier like WEKA when every GPU server already has internal PCIe Gen 5 NVMe SSDs?

The answer lies in the fundamental difference between single-server local caching and cluster-wide distributed serving.

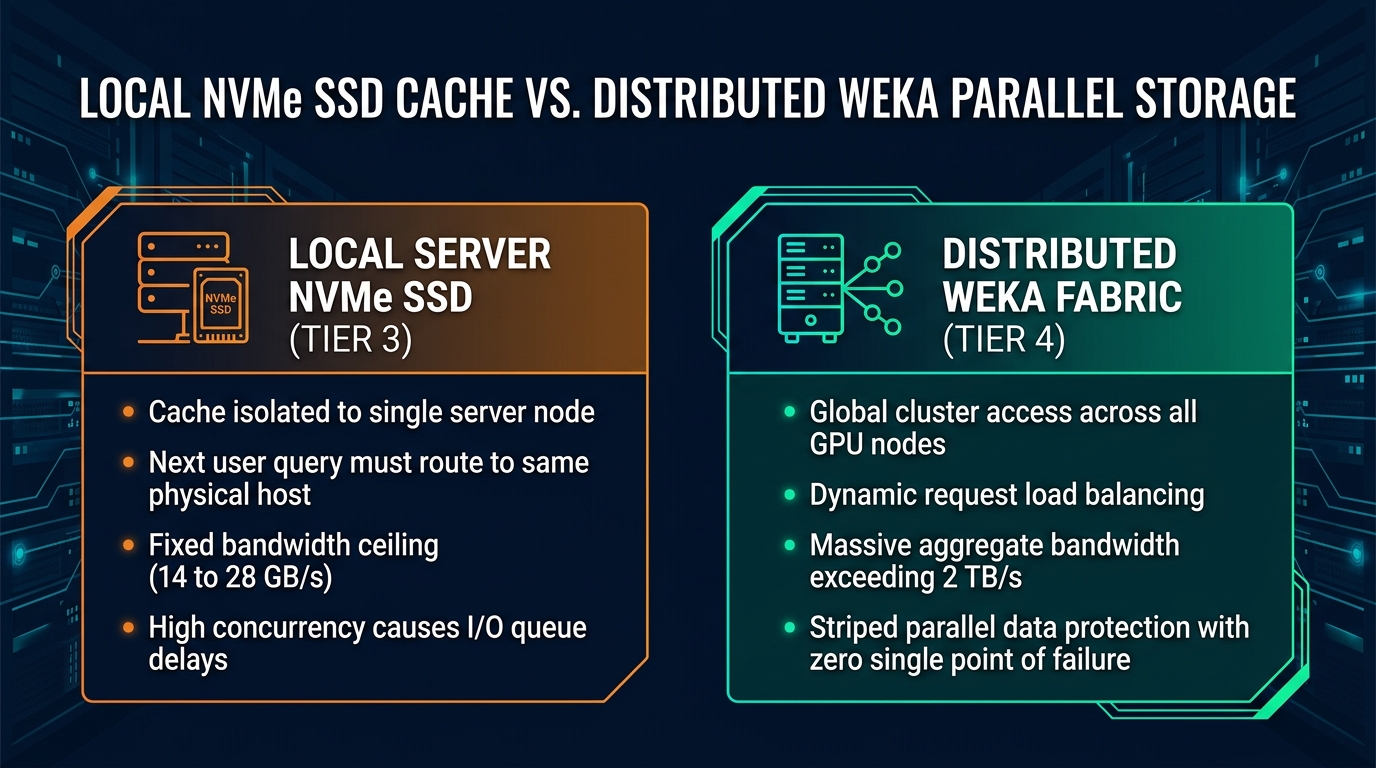

The Stranded Cache Trap

In an enterprise AI factory, incoming requests are routed across a pool of dozens or hundreds of GPU servers behind a dynamic load balancer.

If KV caching relies solely on local server SSDs:

• User Alice connects and executes a 200,000-token prompt on Server 01. Her KV cache is offloaded to Server 01’s internal SSD.
• Five minutes later, Alice sends a follow-up query. However, Server 01 is currently 100% occupied running another developer’s workload.
• The load balancer routes Alice to Server 04.
• Server 04 has empty local SSDs. It experiences a Cache Miss.
• Server 04 is forced to recompute all 200,000 tokens of prefill from scratch.

The expensive computation performed on Server 01 was completely wasted because the cache was physically stranded.

Aggregate Bandwidth & Drive Queue Physics

Reloading a massive KV cache must occur within milliseconds; otherwise, the time spent reading from storage negates the time saved by skipping the prefill phase.

Consider reloading 50 GB of KV cache for an active batch:

• On a single local enterprise SSD operating at a real-world random read rate of 7 GB/s, reading 50 GB requires over 7.1 seconds. During those 7 seconds, the GPU sits idle.
• Across a distributed parallel filesystem like WEKA NeuralMesh, the data is striped across hundreds of NVMe SSDs operating concurrently over multiple 400Gb/s network interfaces. The effective aggregate throughput exceeds 100 GB/s, restoring the entire 50 GB cache in under 500 milliseconds.

A distributed parallel storage tier transforms KV-cache offloading from an impractical, high-latency hack into a wire-speed architectural tier.

7. WEKA NeuralMesh: Under the Hood

To understand why WEKA has emerged as a premier storage architecture for AI accelerators, we must examine its internal software-defined engine: WEKA NeuralMesh.

WEKA is not an appliance wrapper around standard Linux filesystems, nor is it a generic object store overlay. It is a proprietary, ground-up distributed parallel filesystem engineered specifically for ultra-low latency, massive concurrency, and kernel-bypass hardware utilization.

The Software Architecture

WEKA runs as a distributed cluster of software processes executing on Linux hosts. The architecture divides internal operations into four specialized, pinned software engines:

1. Frontend Processes:
   Manage client connectivity and protocol presentation. The frontend implements native POSIX interfaces, high-concurrency S3 REST endpoints, NFSv3, and SMB. Most importantly, it exposes a direct user-space communication path for the WEKA client driver, completely bypassing the operating system’s Virtual File System (VFS) and page cache.
2. Compute Processes:
   The core intelligence of NeuralMesh. Compute processes run on dedicated CPU cores, executing in user space via the Data Plane Development Kit (DPDK). They handle distributed metadata striping, distributed lock management, clustering state machines, and mathematical Reed-Solomon erasure coding. By utilizing continuous polling rather than OS hardware interrupts, WEKA compute processes process millions of I/O operations per second with sub-50 microsecond latencies.
3. Drive Processes:
   The low-level hardware abstraction layer. Drive processes communicate directly with physical NVMe solid-state drives using user-space polling drivers (similar to SPDK). They manage raw flash blocks, maintain continuous health and wear-leveling telemetry, and execute parallel read/write transactions without triggering Linux kernel I/O schedulers or context switches.
4. Management Processes:
   Handle cluster orchestration, provisioning, security policies, multi-tenant RBAC, metrics telemetry, and automated cloud tiering policies.

Deployment Topologies

WEKA supports three distinct operational deployment models:

• Dedicated Deployment (Disaggregated): Storage services run on a standalone cluster of dedicated, certified storage servers populated with enterprise NVMe SSDs. Compute nodes (GPU servers) access the storage fabric over an InfiniBand or RoCE v2 network using the lightweight WEKA client. This allows storage capacity and GPU compute to scale entirely independently.
• Converged Deployment: WEKA storage processes (compute, drive, and frontend) execute directly on the same physical bare-metal servers that house the GPUs, utilizing a partitioned subset of CPU cores, host RAM, and local NVMe drives.
• NeuralMesh Axon: A specialized client architecture running directly on GPU compute instances. Axon integrates with NVIDIA GPUDirect Storage to facilitate direct peer-to-peer DMA transfers between GPU HBM and remote WEKA storage targets with zero intermediate host CPU involvement.

8. Does WEKA Require Proprietary Hardware?

A persistent misconception in enterprise infrastructure is that ultra-high-performance parallel filesystems require expensive, proprietary ASIC hardware or custom-fabricated storage controllers.

WEKA is entirely software-defined. It runs on standard off-the-shelf x86-64 and ARM server hardware (from vendors such as Dell, HPE, Supermicro, Lenovo, and Cisco) as well as within public hyperscale clouds (AWS, Google Cloud, Microsoft Azure, and Oracle Cloud Infrastructure).

However, being software-defined does not mean arbitrary commodity desktop hardware is supported. To sustain wire-speed microsecond latencies, WEKA enforces strict hardware qualification standards:

9. WEKA Augmented Memory Grid

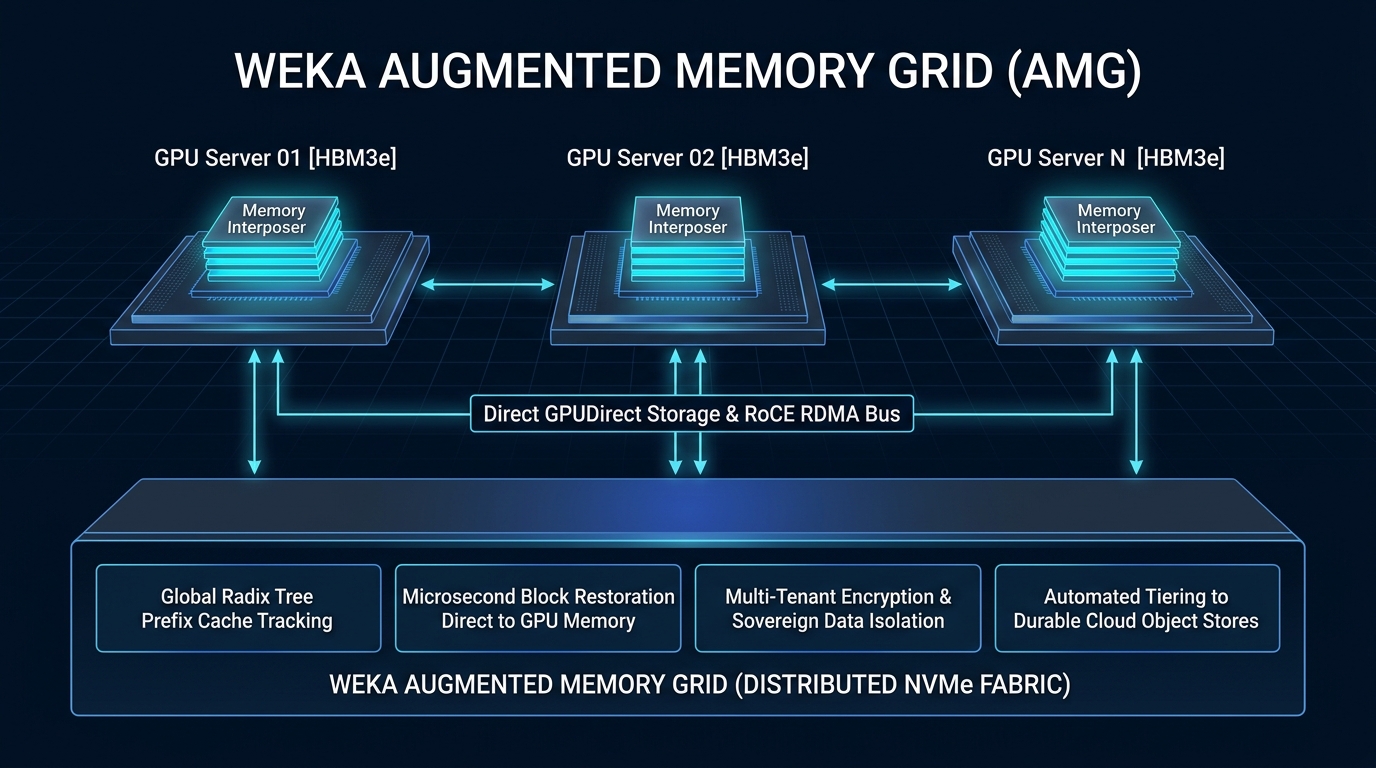

Building on its NeuralMesh architecture, WEKA developed the Augmented Memory Grid (AMG), a purpose-built architectural initiative designed specifically to address the AI Memory Wall in inference clusters.

Instead of treating storage merely as a file repository for datasets and model weights, the Augmented Memory Grid positions distributed NVMe flash as a persistent, cluster-wide L4 memory extension.

Key Engineering Capabilities of AMG

1. Cross-Node Prefix Sharing: If an autonomous agent system prompt (e.g., a 25,000-token enterprise knowledge base + system instruction) is processed by GPU Node A, its KV cache is written to the Augmented Memory Grid. When GPU Node B subsequently receives a request sharing that exact prefix, Node B pulls the cached blocks directly from the Grid at line rate, eliminating redundant prefill computation.
2. Deterministic Context Handover: In long-running multi-agent pipelines (such as Zero-Loss Context Resets), an agent supervisor can crystallize an intermediate execution state, flush the raw KV tensors to AMG, and release the GPU HBM for other workers, knowing the state can be restored in milliseconds when the worker resumes.
3. Decoupled Accelerator Scheduling: Inference engines no longer need to restrict batch concurrency based on the absolute limits of local GPU HBM. HBM functions as an ultra-fast L1 cache for the active generation frontier, while the Augmented Memory Grid acts as an elastic, multi-terabyte L4 cache backing the cluster.

[!IMPORTANT] Operational Boundary:
The Augmented Memory Grid does not automatically intercept and cache every arbitrary inference request out of the box without integration. It functions as an optimized storage and caching substrate exposed via high-performance APIs and filesystem paths, requiring integration with inference runtime orchestrators (such as vLLM’s multi-tier offload managers or custom TensorRT-LLM cache controllers).

10. Networking Standards and the Data Path

The difference between successful KV-cache offloading and an unacceptable latency stall comes down to networking physics.

If an offload mechanism relies on conventional TCP/IP sockets over standard Linux network drivers, the overhead of kernel interrupts, socket buffer copies, and CPU context switches will introduce hundreds of microseconds of jitter.

Accelerated AI memory architectures require a strictly optimized hardware data path:

The Core Protocol Stack

• PCIe Gen 5: Provides 32 GT/s per lane, yielding ~64 GB/s of bidirectional raw bandwidth per x16 slot. Essential for moving data between GPU accelerators, host memory, and network interfaces.
• NVMe over Fabrics (NVMe-oF): Extends the low-overhead NVMe command set across high-speed network fabrics, allowing remote storage targets to be accessed with latencies approaching internal drives.
• RDMA (Remote Direct Memory Access): Enables network adapters to transfer data directly into or out of application memory without involving the operating system kernel or CPU on either side.
• RoCE v2 vs. InfiniBand:
  • InfiniBand: A purpose-built, credit-based, natively lossless interconnect dominating traditional HPC supercomputers. Delivers the absolute lowest latency and jitter.
  • RoCE v2 (RDMA over Converged Ethernet): Encapsulates InfiniBand transport packets inside standard UDP/IP Ethernet frames. Requires careful configuration of Priority Flow Control (PFC) and Explicit Congestion Notification (ECN) on network switches to eliminate packet loss.

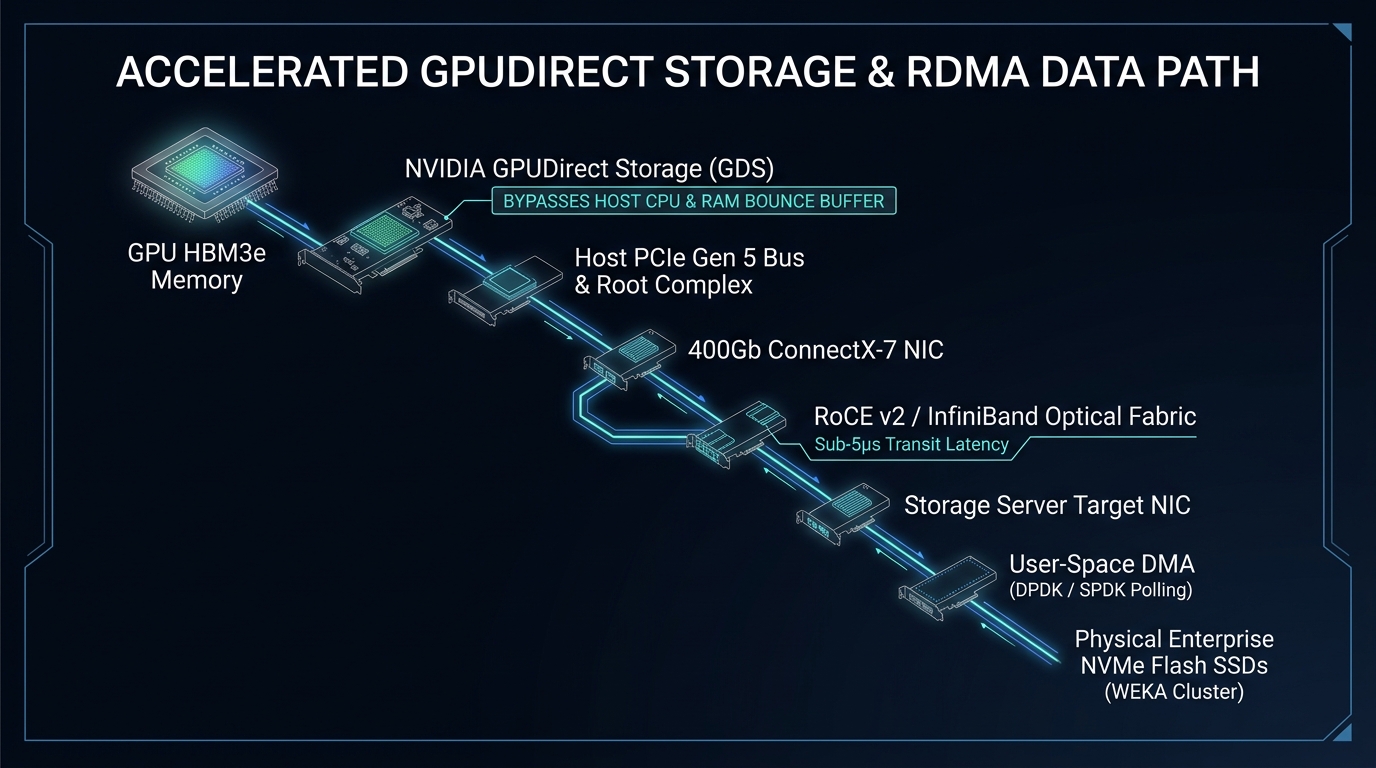

• NVIDIA GPUDirect Storage (GDS):
  A software and driver framework that establishes a direct DMA path between local/remote NVMe storage and GPU High Bandwidth Memory. By utilizing PCIe peer-to-peer (P2P) transfers, GDS eliminates the intermediate host CPU bounce buffer entirely, freeing host CPU cores and cutting latency by up to 70%.

11. Real-World Inference Scenario: The 750,000-Token Coding Agent

To demonstrate the mathematical reality of the Memory Wall, let us analyze a concrete, real-world inference engineering scenario.

An enterprise deployment runs an autonomous AI coding and refactoring assistant. A developer asks the agent to analyze an entire enterprise monorepo along with its test suite, architecture documentation, and dependency graph. The total active context length reaches 750,000 tokens.

The organization deploys an open-weights model based on the standard Llama-3-70B transformer architecture.

The KV-Cache Formula

For any conventional autoregressive transformer using multi-head or grouped-query attention, the exact capacity footprint of the KV cache is calculated as follows:

KV Bytes Per Token = 2 × Layers × KV Heads × Head Dimension × Bytes Per Element

Where:

• 2 accounts for the two independent tensors: Key (K) and Value (V).
• Layers (L) = Number of transformer layers.
• KV Heads (H_kv) = Number of Key-Value attention heads (in Grouped-Query Attention, H_kv < H_q).
• Head Dimension (d_k) = Dimension per attention head (hidden dimension divided by query heads: d_model / H_q).
• Bytes Per Element (P) = Precision storage size (2 bytes for FP16/BF16, 1 byte for FP8, 0.5 bytes for INT4).

Sizing Llama-3-70B

Let us plug in the disclosed, verified architectural parameters of Llama-3-70B:

• Layers (L) = 80
• Query Heads (H_q) = 64
• KV Heads (H_kv) = 8 (Grouped-Query Attention with 8:1 sharing ratio)
• Head Dimension (d_k) = 128
• Precision (P) = 2 bytes (FP16 / BF16)

KV Bytes Per Token = 2 × 80 × 8 × 128 × 2 = 327,680 bytes (~320 KiB per token)

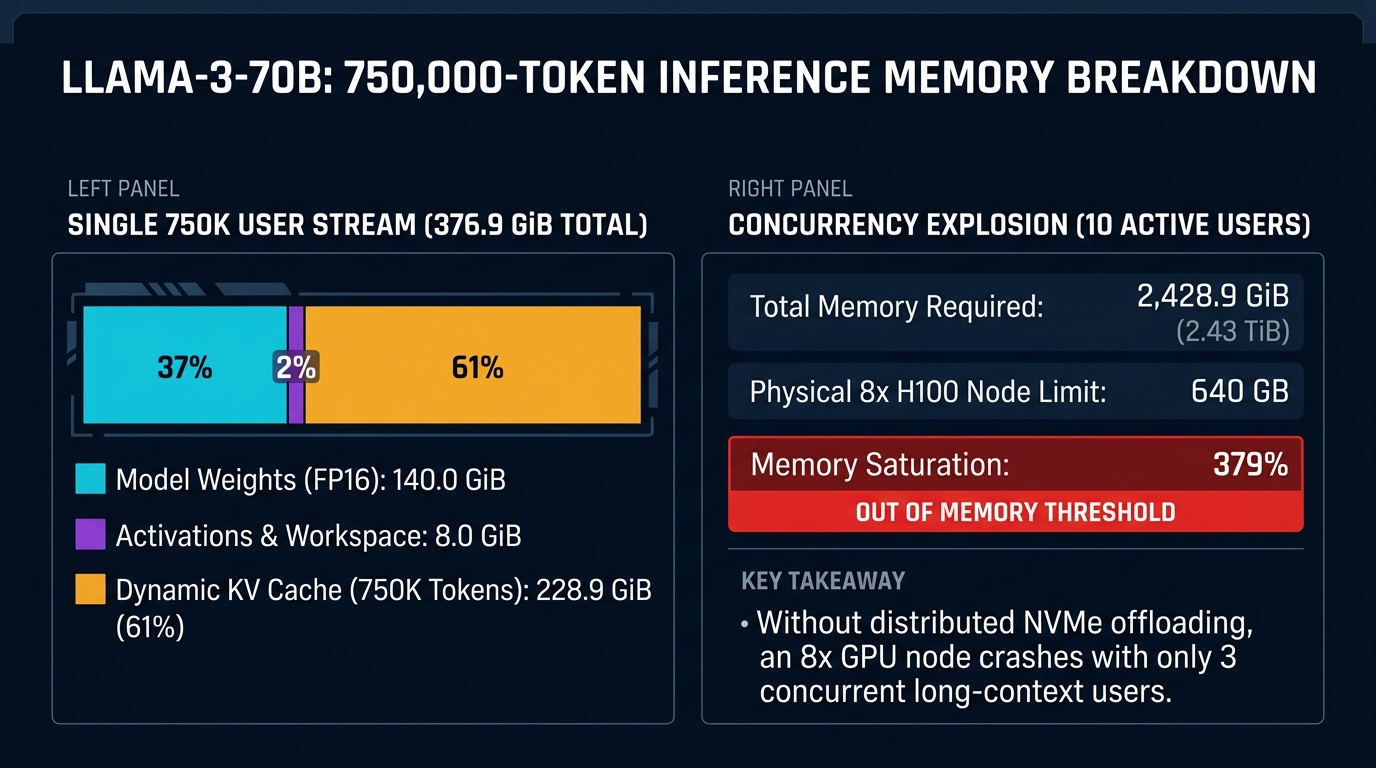

Now calculate the footprint for a single user session with 750,000 tokens:

Single Session Footprint = 750,000 × 327,680 bytes = 245,760,000,000 bytes ≈ 228.88 GiB

A single developer’s active conversation requires 228.88 GiB of pure KV cache!

On an 8-way NVIDIA H100 SXM5 server (total aggregated HBM3 = 640 GB):

• Loading the model weights leaves 500 GB of free HBM.
• A single 750,000-token user stream consumes 228.9 GB (almost 46% of the server’s remaining memory).
• Two concurrent users consume 457.8 GB of KV cache.
• A third concurrent user triggers an immediate Out-Of-Memory (OOM) crash.

An entire 8-GPU, $300,000 supercomputer is throttled to just two concurrent active users, not because its compute cores are exhausted, but because the KV cache has hit the Memory Wall.

12. Interactive KV-Cache Capacity Calculator

Use the interactive engineering model below to test how different transformer configurations, context lengths, and batch concurrency levels impact memory demand across physical GPU clusters:

13. Training Versus Inference Storage: The Architectural Split

A critical responsibility of the AI infrastructure architect is recognizing that the storage I/O profile of model training is fundamentally different from that of model inference.

Attempting to force both workloads onto a generic storage array designed for one or the other results in massive inefficiencies:

During training, the storage system must feed continuous streams of tokenized text or image files to GPUs at hundreds of gigabytes per second to keep compute utilization at 95%+, and rapidly absorb multi-terabyte checkpoint dumps during periodic save intervals.

During inference, the storage system functions as a high-speed paging extension. It must handle millions of small, random KV block transfers with microsecond-level determinism, enabling the inference scheduler to restore cached attention matrices before the user notices an interactive delay.

14. GPU Economics: The Financial ROI of Cache Hits

The economic value of distributed KV caching is directly measurable in compute cost savings.

Consider an enterprise operating a cluster of 64 NVIDIA H100 GPUs deployed for internal AI agent reasoning tasks:

• Hardware Operating Cost: Estimated at $3.50 per GPU-hour (yielding $224.00 per cluster-hour).
• Workload Characteristics: 10,000 user requests per day. Average conversation context length = 100,000 tokens.
• Average Prefix Overlap: 80% of tokens in each request consist of shared system prompts, codebase indexes, and prior conversation history.

Scenario A: Brittle PoC Architecture (Zero KV Offloading)

• Execution: Every time a user sends a query, prior attention states have been evicted from HBM. The GPUs must recompute all 80,000 prefix tokens from scratch.
• Prefill Compute Time: At ~400 tokens/sec prefill throughput per GPU stream, recomputing 80,000 tokens consumes ~200 GPU-seconds per request.
• Daily Compute Waste: 10,000 requests × 200 seconds = 2,000,000 GPU-seconds (~555.5 GPU-hours).
• Daily Cost of Recomputation: 555.5 hours × $3.50 = $1,944.25 per day (~$709,650 per year) spent running identical mathematical operations repeatedly.

Scenario B: Production Fabric with WEKA Augmented Memory Grid

• Execution: The 80,000 prefix tokens are indexed and retained in the distributed NVMe fabric.
• Cache Hit Rate: 85%.
• Prefill Compute Saved: The cluster restores the 80,000-token KV blocks from WEKA over GPUDirect Storage in ~350 milliseconds, completely bypassing the 200-second compute cycle.
• Daily Compute Savings: Over 470 GPU-hours of redundant compute reclaimed daily.
• Financial Result: The enterprise saves over $600,000 annually in compute spend while reducing average user response latency by more than 80%.

Investing in high-performance distributed parallel storage pays for itself by directly reducing the number of million-dollar GPU nodes required to achieve a target SLA.

15. Real-World Case Study: Core42, G42, and Sovereign AI

The practical implementation of these architectural principles is demonstrated in sovereign cloud infrastructure.

A prominent real-world example is Core42, a subsidiary of the UAE-based AI technology holding group G42. Core42 builds and operates sovereign cloud and AI supercomputing infrastructure designed to host national-scale enterprise workloads, government platforms, and indigenous large language models (such as the Arabic-centric Jais model family).

In public infrastructure documentation and customer disclosures, WEKA lists Core42 as an enterprise client utilizing WEKA NeuralMesh technology to power high-throughput storage for its AI accelerator clusters.

The Sovereign Architecture Imperative

For a sovereign AI cloud provider like Core42, the infrastructure requirements go beyond raw performance benchmarks:

1. Guaranteed Data Residency & Cryptographic Isolation: Sovereign enterprise clients require strict guarantees that corporate data and model states never leave national borders. A software-defined parallel filesystem deployed on bare-metal sovereign clusters provides on-premises control that public hyperscalers cannot match.
2. Multi-Tenant Accelerator Utilization: In a national AI cloud serving healthcare, finance, and government ministries simultaneously, stranded GPU capacity cannot be tolerated. Utilizing high-performance distributed NVMe fabrics ensures multi-tenant models can swap weights and reload massive context caches without stalling accelerator hardware.
3. Architectural Differentiation within G42: It is important to note that within the broader G42 ecosystem, multiple complementary storage technologies are evaluated and deployed for different workloads. For instance, G42 also maintains strategic relationships with other enterprise storage providers (such as VAST Data). While one platform may be chosen for broad unstructured data lakes and corporate archive repositories, WEKA NeuralMesh is specifically leveraged where kernel-bypass parallel POSIX throughput and bare-metal accelerator saturation are the paramount technical criteria.

16. Architecture Decision Framework & Conclusions

To guide infrastructure leaders and systems architects, we summarize the trade-offs across each memory and storage tier:

The Engineering Conclusion

For the past five years, the narrative surrounding AI infrastructure has been dominated by a single hardware arms race: buying faster GPUs with higher tensor FLOP ratings.

However, as the AI industry transitions from simple query-response chat interfaces to autonomous multi-turn agents, million-token context windows, and real-time voice telephony, raw FLOPs are no longer the primary determinant of performance.

The next generation of AI systems engineering is defined by how intelligently model execution, working memory, context reuse, networking fabrics, and distributed storage are coordinated into one unified system.

By breaking the boundaries of physical GPU HBM and treating distributed NVMe parallel storage as a wire-speed memory extension, engineering teams can eliminate redundant computation, slash operating costs, and finally conquer the AI Memory Wall.

References & Primary Technical Documentation

• WEKA NeuralMesh System Overview & Architecture Documentation
• WEKA Hardware Compatibility & Prerequisites Guide
• WEKA Customer Case Study: Core42 Sovereign AI Supercomputing
• WEKA Augmented Memory Grid: Unlocking Scalable AI Inference
• WEKA & Nebius AI Cloud Performance Benchmarks (September 2026)
• vLLM KV-Cache Offloading & PagedAttention Feature Guide
• vLLM Research: Tiered KV-Cache Offloading Architecture
• NVIDIA GPUDirect Storage (GDS) Design Guide & Architecture
• Agent Junky Deep Dive #16: From SAN to Sovereign AI Storage Revolution
• Agent Junky Interactive AI Storage Atlas & Workload Lab
